Groundwater air cooler

Air cooler using groundwater temperature stability
General Name
Air cooler using renewable energy

Low-temperature groundwater is dripped onto a special pad to cool the air directly, providing cooler air than an evaporative cooler. There is little or no change in humidity.

Power consumption is less than 15% of that of an air conditioner, and since it does not emit exhaust heat, it provides overwhelming energy savings.

In addition, it can cool a larger area than spot coolers.

■Use in such a case.
  • If you want to cool only where people are present in an indoor work space without air conditioning.
  • If you want to cool the space I use only at certain times of the year or at certain times of the day.
  • For heat protection for workers in semi-open warehouses and work spaces.
  • If you want to lower the temperature in the compressor room.
  • If you want to keep your work space comfortable and your electricity bill low.

Features

Higher cooling effect than evaporative coolers

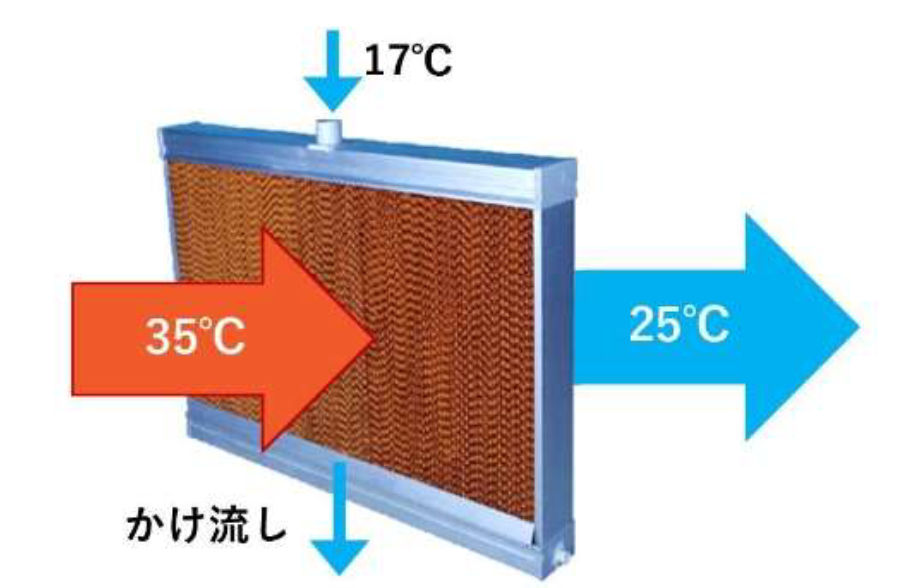

Low-temperature groundwater is dripped onto a special pad to cool the air directly, providing cooler air.

This groundwater air cooler provides higher cooling effectiveness than evaporative coolers.
Low-temperature groundwater is dripped onto a special pad to cool the air directly, providing cooler air.
The standard blowout temperature is "groundwater + approx. 8°C".

Power consumption reduced by 85% or more (compared to general air conditioners)

In addition to reducing cooling costs, demand can be significantly reduced by cutting peak summer power consumption.

Operates with a small amount of water (5 to 7 L/min.)

It can operate with less water than similar products. In addition, pre-treatment with an original water treatment filter is available.

Operation is possible even without groundwater by using a dedicated chiller

If groundwater is not available or cannot be used, a small chiller unit can be used in conjunction with the system.
When combined with a chiller, the standard blowout temperature can be cooled to "groundwater + approx. 3°C".

Specifications

Stainless Steel Body Series

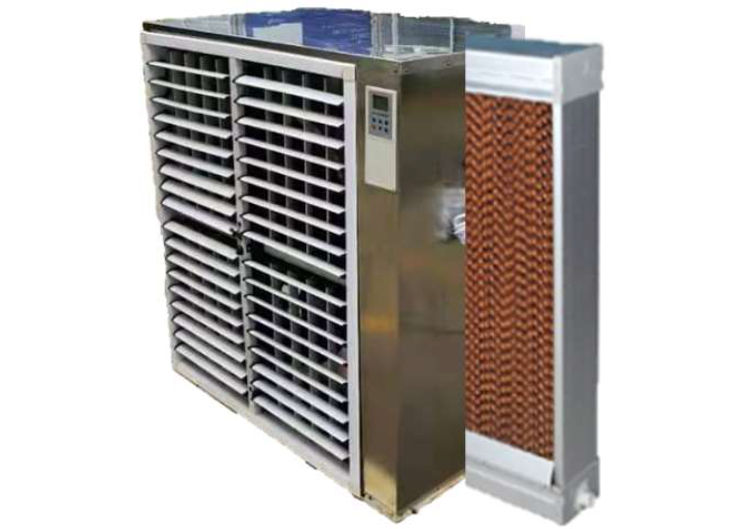

Single panel type AG-DCS-P

Groundwater air cooler Single panel type AG-DCS-P Product Image
Rated powerSingle phase 200V 50/60Hz
770w/1100w
maximum wind speed200 to 250 ㎥/min
Dimensions of main unitW1109 x D630 x H1242 (mm)
Volume of water used5L/min
Frame MaterialSUS
Air volume adjustment10 steps
Wind direction adjustmentVertical and horizontal loopers
Approximate air conditioning range100-150㎡/unit
EnvironmentIndoor (outdoor use possible)

*Explosion-proof specification available

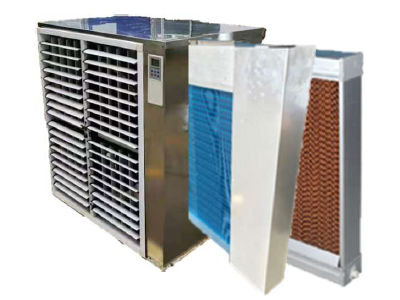

Radiator combined specification AG-DCS-PR

Groundwater air cooler Radiator combined specification AG-DCS-PR Product Image
Rated powerSingle phase 200V 50/60Hz
770w/1100w
maximum wind speed200 ㎥/min
Dimensions of main unitW1109 x D874 x H1352 (mm)
Volume of water used15L/min
Frame MaterialSUS
Air volume adjustment10 steps
Wind direction adjustmentVertical and horizontal loopers
Approximate air conditioning range100-150㎡/unit
EnvironmentIndoor (outdoor use possible)

Applications

Installation example

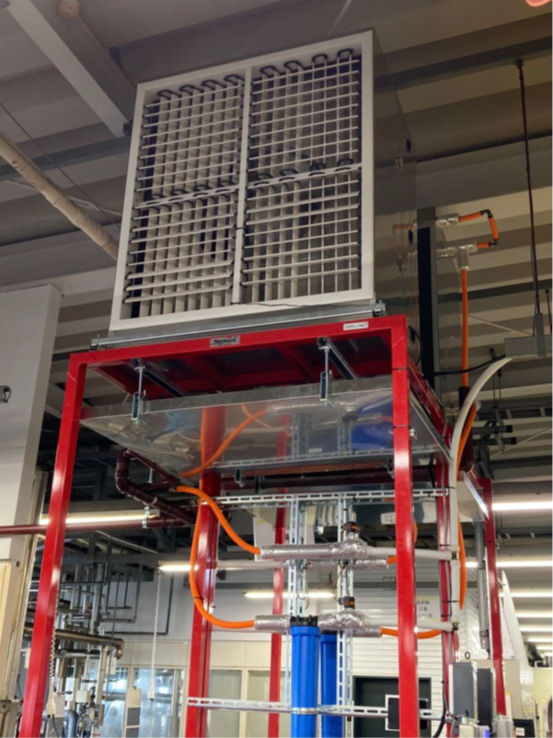

Chemical plant

Groundwater air cooler Installation example; Chemical plant

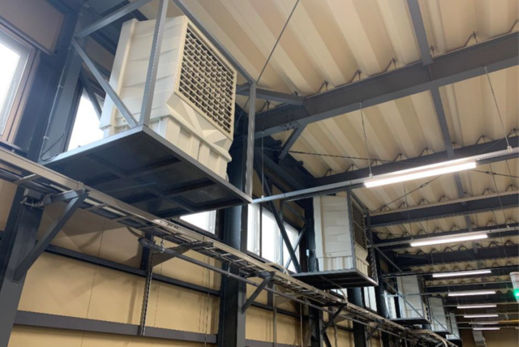

Metalworking plant

Groundwater air cooler Installation example; Metalworking plant

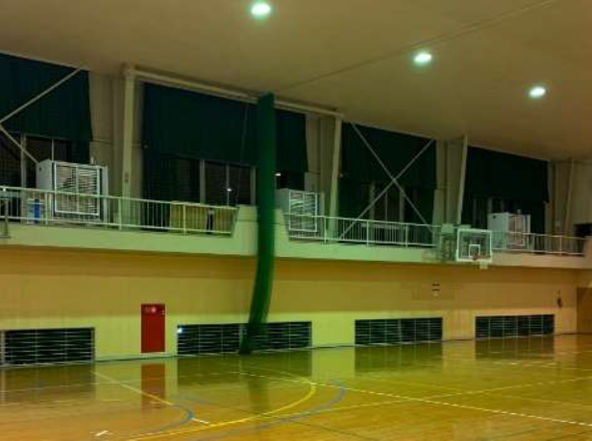

Gymnasium

Groundwater air cooler Installation example; Gymnasium
Groundwater air cooler Installation example; Gymnasium
