It is a sheet that absorbs and decomposes bad odors. Two types of fine powder deodorizers are kneaded into the product to reduce ammonia and other odors.
It can be easily installed in various locations that suffer from bad odors, alleviating stress and discomfort caused by odors.
It is used for odor countermeasures in cattle, pig, and chicken coops, compost pits, and places where dogs, cats, and small animals are kept, and has received favorable comments such as, "We have fewer worries about odor during work.
【Features】
Improved work efficiency and environment, long-lasting effect, lightweight and strong.
Features
Adsorbs and decomposes bad odors
Two types of fine powder deodorizers that adsorb and decompose odors are kneaded into the PVC resin, and the following deodorizing effects have been confirmed.
Ammonia (NH3) / Toluene (C7H8) / Trimethylamine (C3H9N) / Isovaleric acid (C5H10O2) / Acetic acid / Acetaldehyde (C2H4O) / Styrene / Formaldehyde etc.
*Please contact us for deodorant effects other than the above.
Deodorizing Mechanism
- Deodorizers adsorb odor molecules.
- Deodorizers generate negative ions when stimulated by ultraviolet rays and light.
- Negative ions have the effect of breaking the bonding chains of odor molecules.
- The bonding chains are cut and atomized, thus eliminating the odor.
Improved efficiency and working environment in barns and livestock operations
Complaints about ammonia odors leaking off the premises and poor barn working conditions are common concerns in the industry.
At such times, installing this product can reduce complaints by adsorbing and decomposing bad odors, thereby improving the workplace environment.
Long-lasting effects
It can be used indoors for 5 years and outdoors for 3 years, depending on environmental conditions.
*This is not a warranty period.

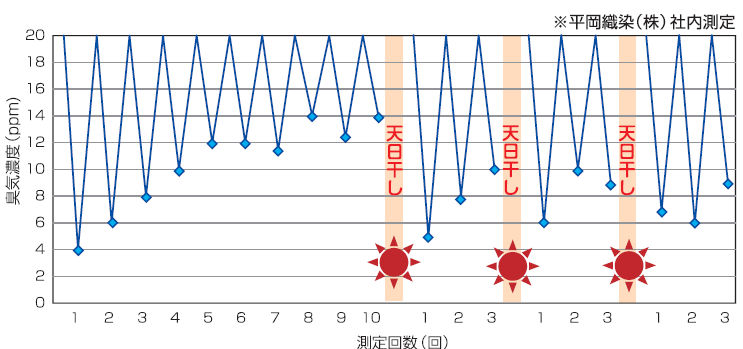

Dust and dirt on the surface will reduce the adsorption ability, but washing and drying in the sun will restore the ability.
If the surface turns yellow or becomes stained brown with dirt, please wash it and dry it in the sun before use.
Lightweight and strong
Lightweight and strong, it can be installed in various locations that suffer from bad odors.
Specifications
Material properties
Base fabric: 100% polyester ・ Resin: polyvinyl chloride (PVC)
Standards and other information
Mesh opening: 2 mm, width 186cm x length 50m, 1 piece
Please contact us for details.
*The product is sold in raw material.
Please contact us for processing (cutting, pigeonholing, rope processing, etc.). We will introduce you to our distributors.
Standards and General Properties
| Width (cm) x Length (m) | 186 x 50 | |||
|---|---|---|---|---|
| Mesh opening (mm) | 2 | |||
| Weight (g/m2) | 430 | |||
| Tensile strength (N/3cm) | 1835 x 1577 | |||
| Shading rate (%) | 40 | |||
| Growth rate (%) | 24 x 26 | |||
| Tearing strength(N) | 489×466 | |||
*Measurement values based on the measurement method specified by JIS
Precautions for use
- Please consult with your dealer before installation.
- For storage, avoid high temperature and humidity, place in a dark and flat place, and do not stack in such a way as to deform the product.
- Products that have been stored for a long time should be checked for deterioration of physical properties before use.
- The mesh structure makes it easy for dust and other particles to adhere to the mesh surface.
- Dust and other contaminants may reduce the ability to decompose ammonia odors. Depending on the dust condition, dust off the surface or remove it and wash it with water before use.
- When disposing of the product, please dispose of it in the following manner.
(1) Dispose of the waste in accordance with the Waste Disposal and Public Cleansing Law and prefectural ordinances.
(2) Entrust disposal to a licensed industrial waste disposal company.
Applications
In the summer house where the compost is fermenting.
The temperature and humidity inside the greenhouses during the summer months are high and humid, but installing ammonia odor decomposition mesh on both sides and at the skylights will reduce the temperature and humidity inside the greenhouses during the summer.
Also, when bad odors pass through it, the odor is reduced. The reduced odor is dispersed and diffused by the open air.
The distance of bad odors that used to travel to distant places has been shortened, and depending on how the ammonia odor decomposition mesh is installed, the distance can be shortened even further.
Effective installation
It is effective to place ammonia odor decomposition mesh inside the building, on the walls, and outside the walls at least 50 cm apart from each other.
The deodorizing effect is enhanced by repeatedly bombarding the sheet with bad odors through air circulation.
Examples of unavailability
If installed directly on a ventilation fan, it cannot be used because odors pass through the ammonia odor decomposition mesh too quickly to be decomposed.
The wind speed of the passage should be less than 0.3m/S.

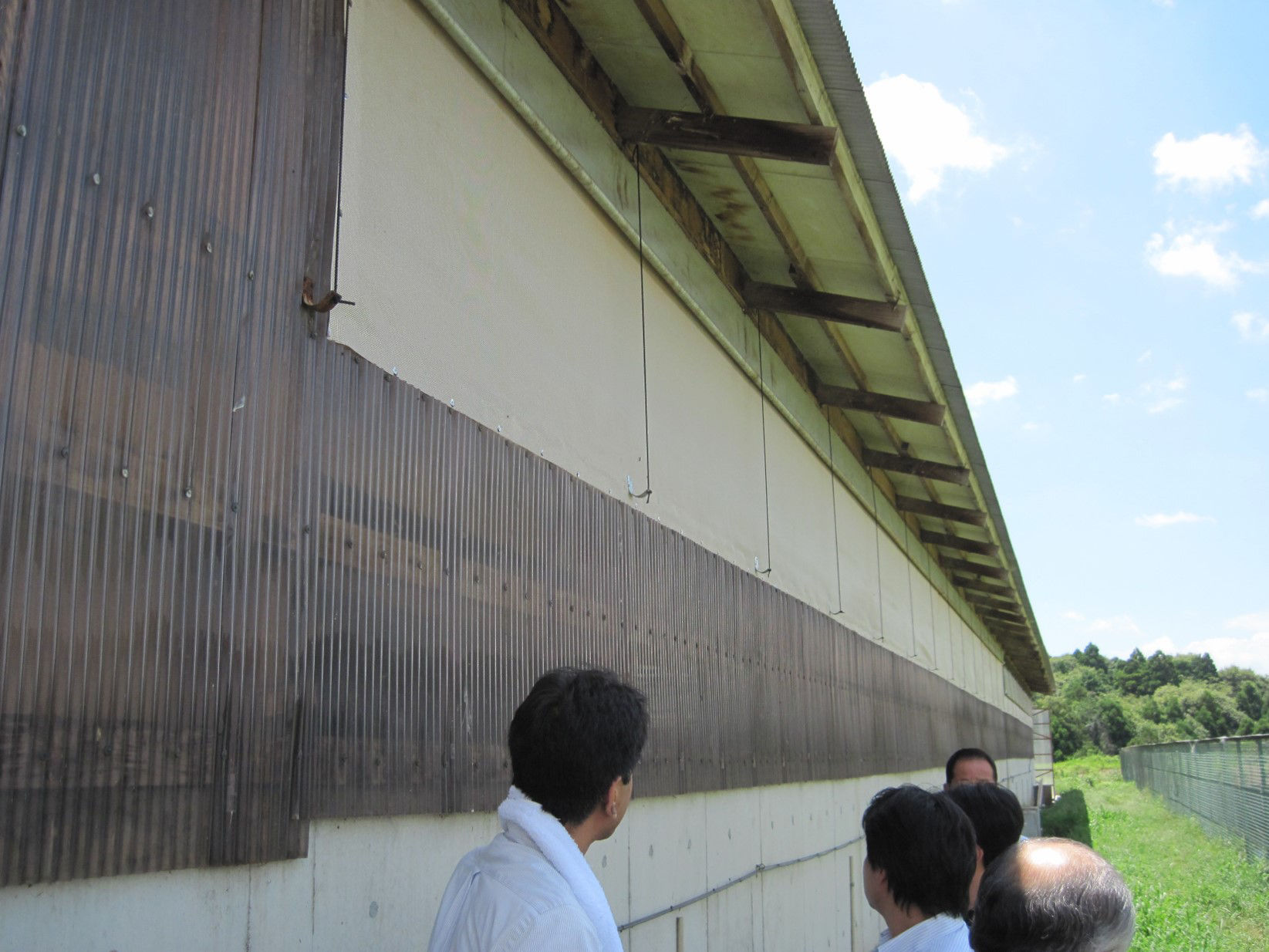

Example of installation in a chicken coop
Reduces malodors (ammonia odor) such as chicken manure.
In a poultry house in the Philippines, feces and urine were falling to the ground floor, causing a bad odor to spread, but after installing ammonia odor decomposition mesh on the side of the ground floor, the bad odor was reduced.

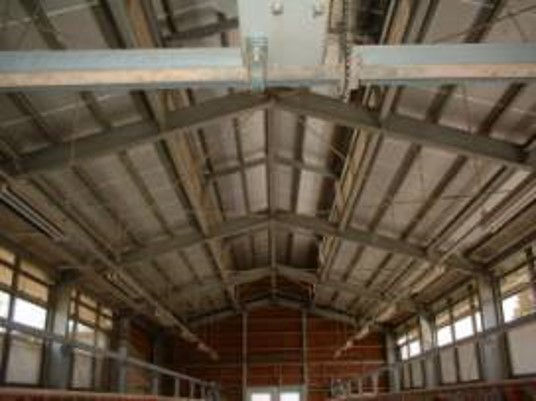

Poultry house 1: Poultry eggs
The system allows outside air in from both sides and discharges odors through skylights.

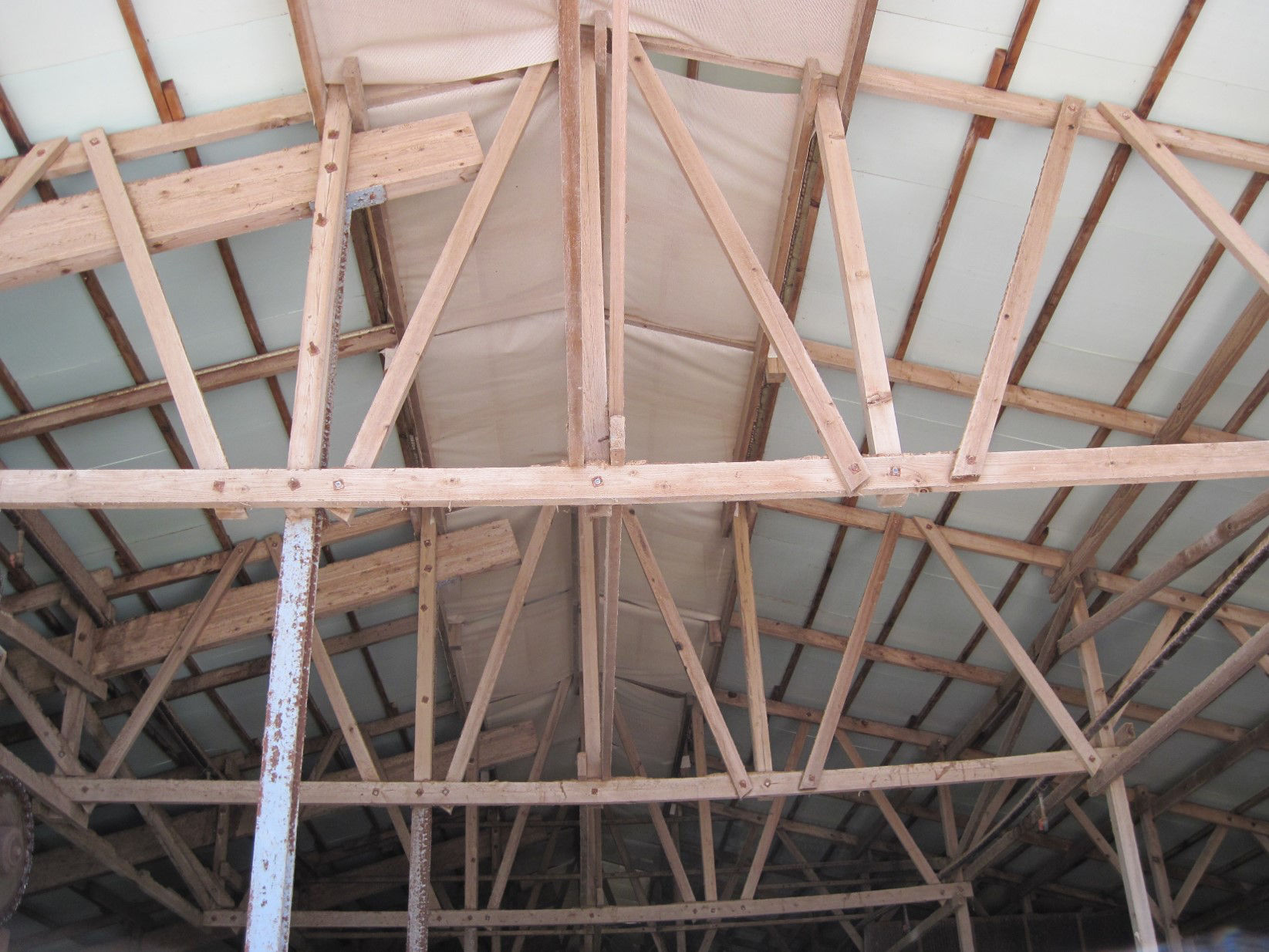

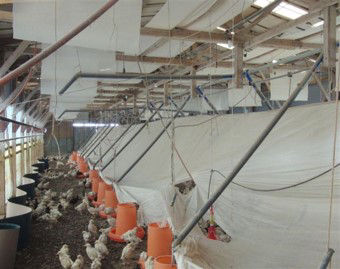

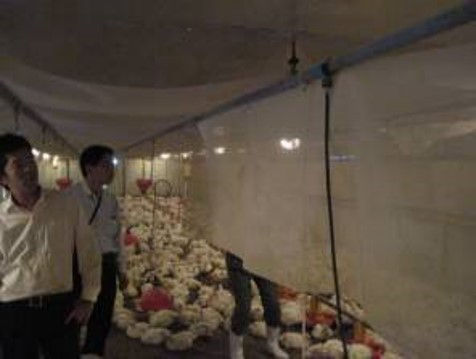

Poultry house 2: Broilers

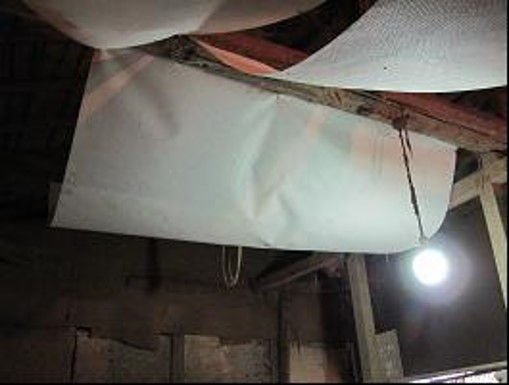

It was installed at the top because the specific gravity of ammonia odor is lighter than that of air.

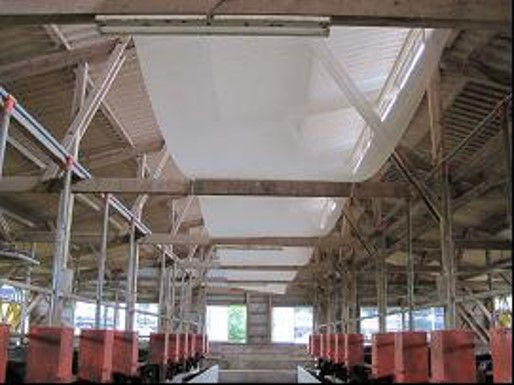

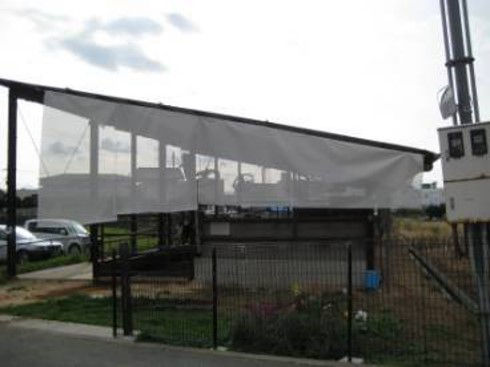

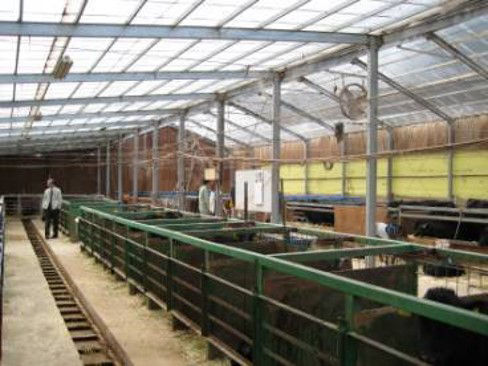

Example of installation in a cattle barn
It is used in calf and dairy barns, petting farms, etc. The reduction of ammonia and other odors has resulted in fewer complaints from neighbors.

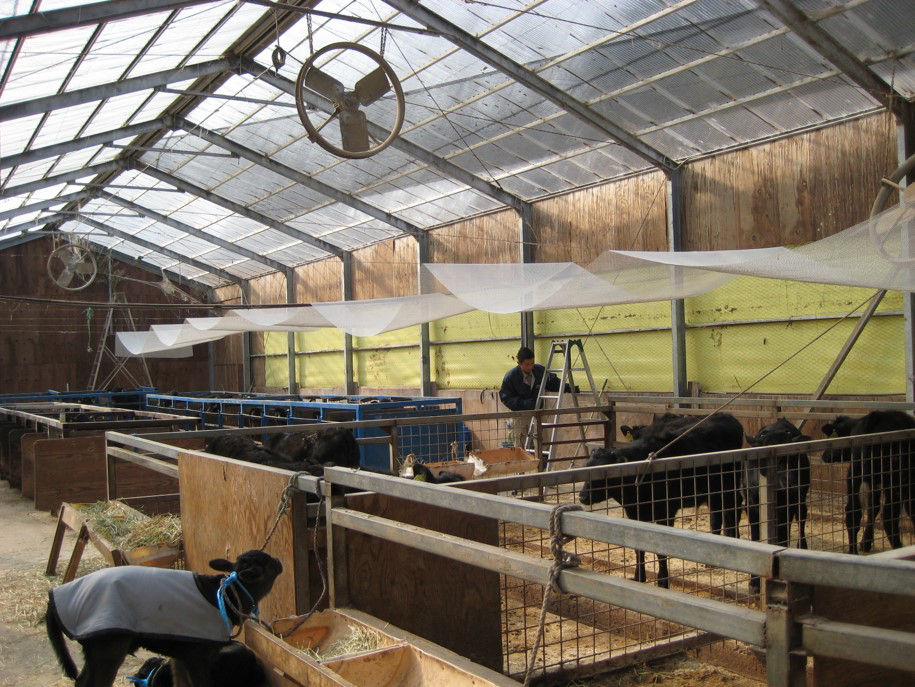

Cattle Barn 1: Greenhouse (calf barn)
The farmer commented that the calves are doing well.
Cattle Barn 2: Educational farm for neighborhood children
Study classes have increased due to the reduction of odors.

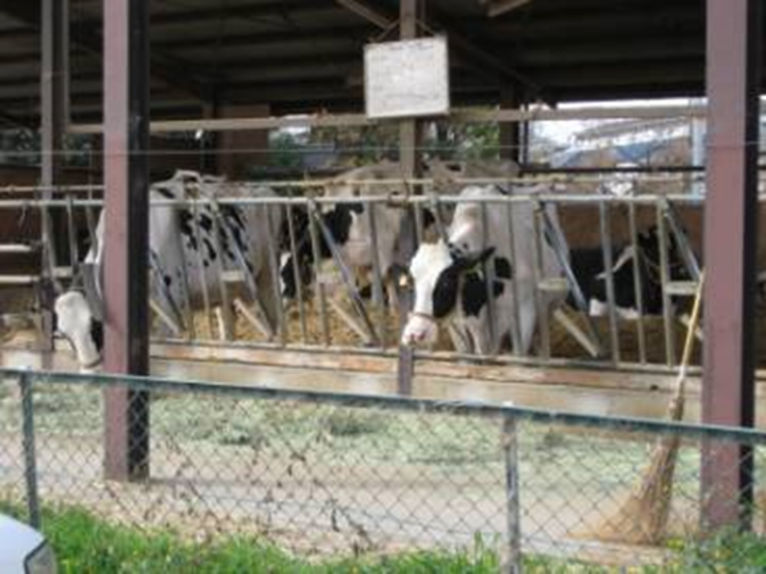

Cattle Barn 3: Petting Farm
Complaints about odors from station users, located within a 100 meter radius of the building, have been reduced.
Cattle Barn 4: Dairy barn in Aichi Prefecture
The odor has been reduced and the bird droppings problem has been reduced.

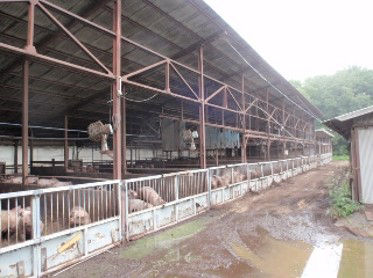

Example of installation in a piggery
Reduces bad odors (e.g., low grade fatty acid odors) in pig barns. We recommend double deodorization by installing ammonia odor decomposition mesh on both the windows of the piggery and the fence at the property boundary.
By allowing the air in the livestock barn to stay in the air, odor decomposition is slowly carried out.

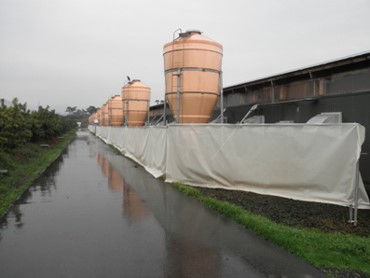

Perimeter of the piggery (along the boundary)
There were complaints of foul odors from people walking on nearby streets, but after the ammonia odor decomposition mesh was installed, the complaints diminished.

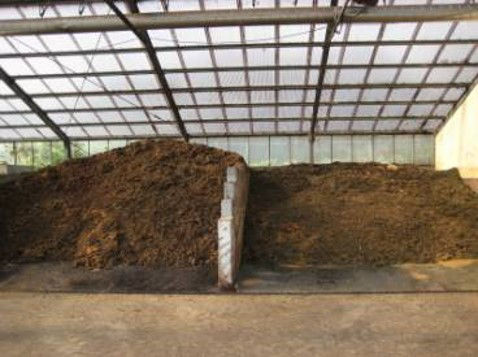

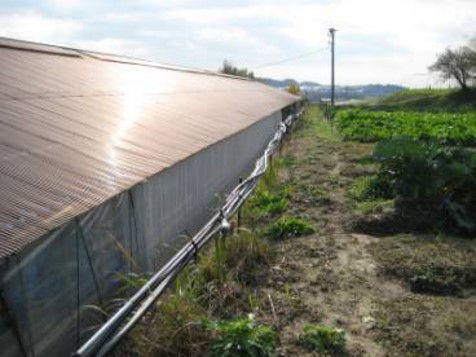

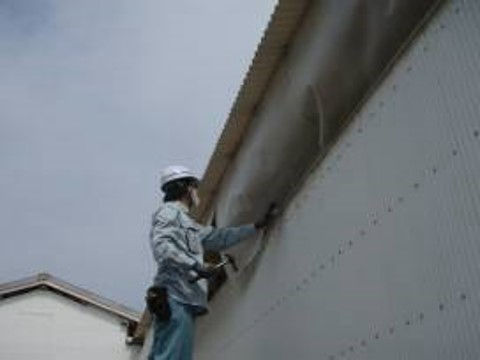

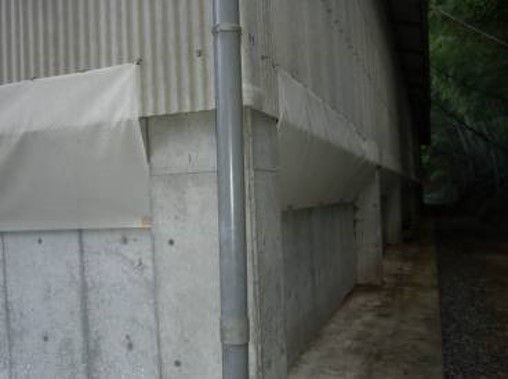

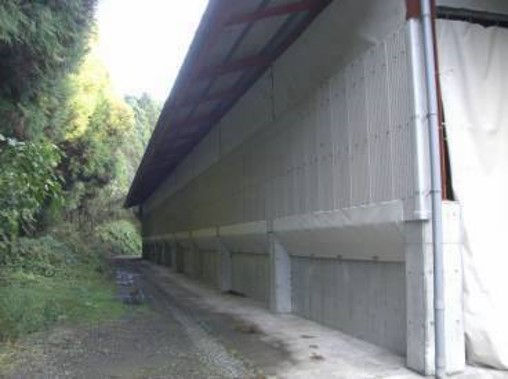

Example of installation in a composting barn
Reduces odors such as ammonia and fermentation odors. By installing ammonia odor decomposition mesh at the entrances and crevices of the compost barn, the company was able to reduce complaints caused by foul odors.
Compost barn 1
Tea leaves were composted, and neighbors complained of a bad odor. The installation of ammonia odor decomposition mesh on both sides of the composting barn has reduced complaints.

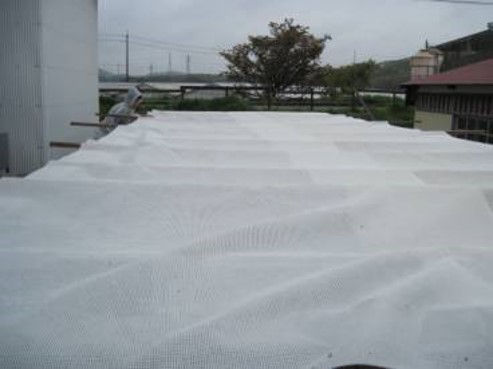

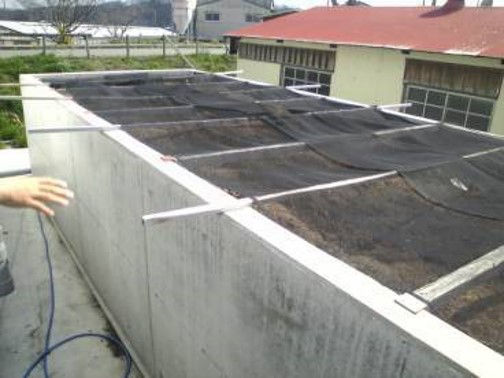

Compost barn 2
Complaints were received that the road along the property boundary was smelly, and ammonia odor decomposition mesh was installed on top of the odor reduction container.

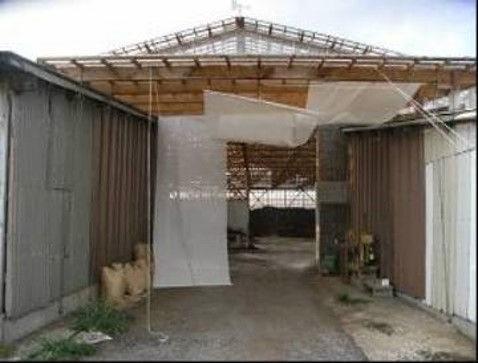

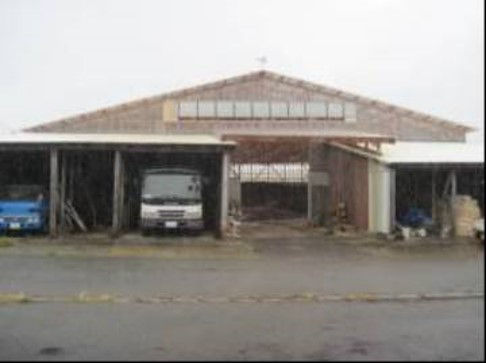

Compost barn 3: Curtain-type
A curtain-type ammonia odor decomposition mesh was installed, which can be opened and closed at any time, to allow large trucks to enter and exit the building.

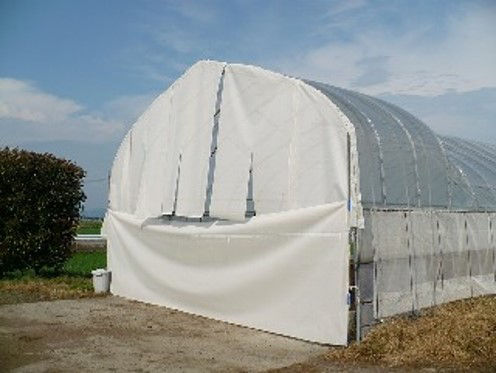

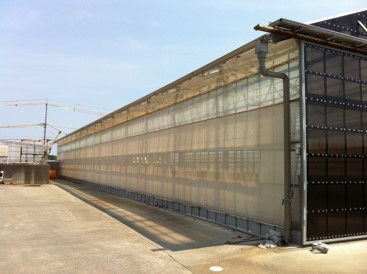

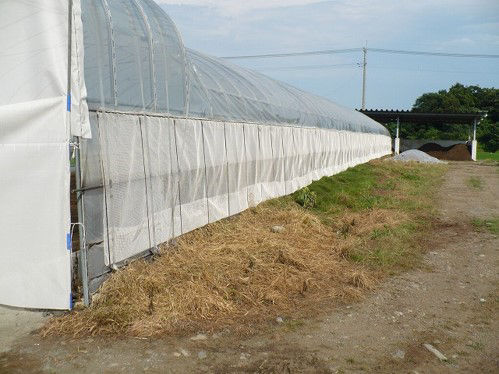

Compost barn 4: Greenhouse type
Since the sides of the greenhouse are also opened and closed occasionally, ammonia odor decomposition mesh was installed at the entrance and on both sides of the greenhouse (all areas outside of the film installation).

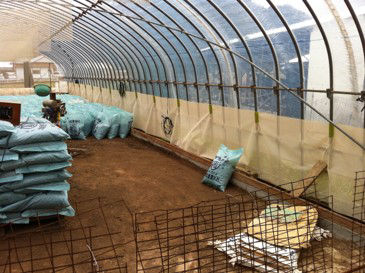

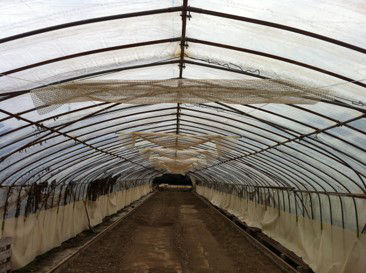

Compost barn 5: Inside the greenhouse
The ammonia odor decomposition mesh was installed on both sides of the inside of the greenhouse and in hanging positions where it would not interfere with the work.

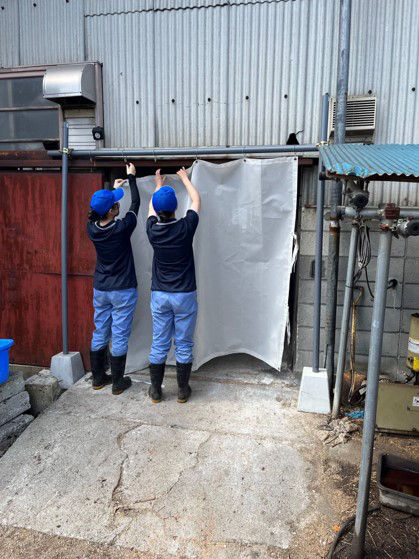

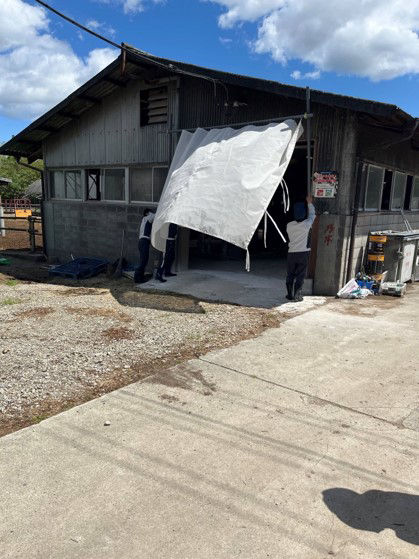

Compost barn 6: Entrances, windows, and crevices
Stench was causing complaints from the surrounding residents. The compost barn and building entrances, windows, and crevices were equipped with ammonia odor decomposition mesh to reduce foul odors.

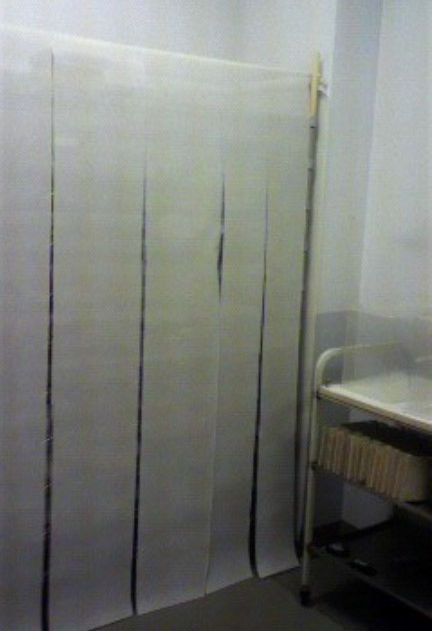

Example of installation at building entrance

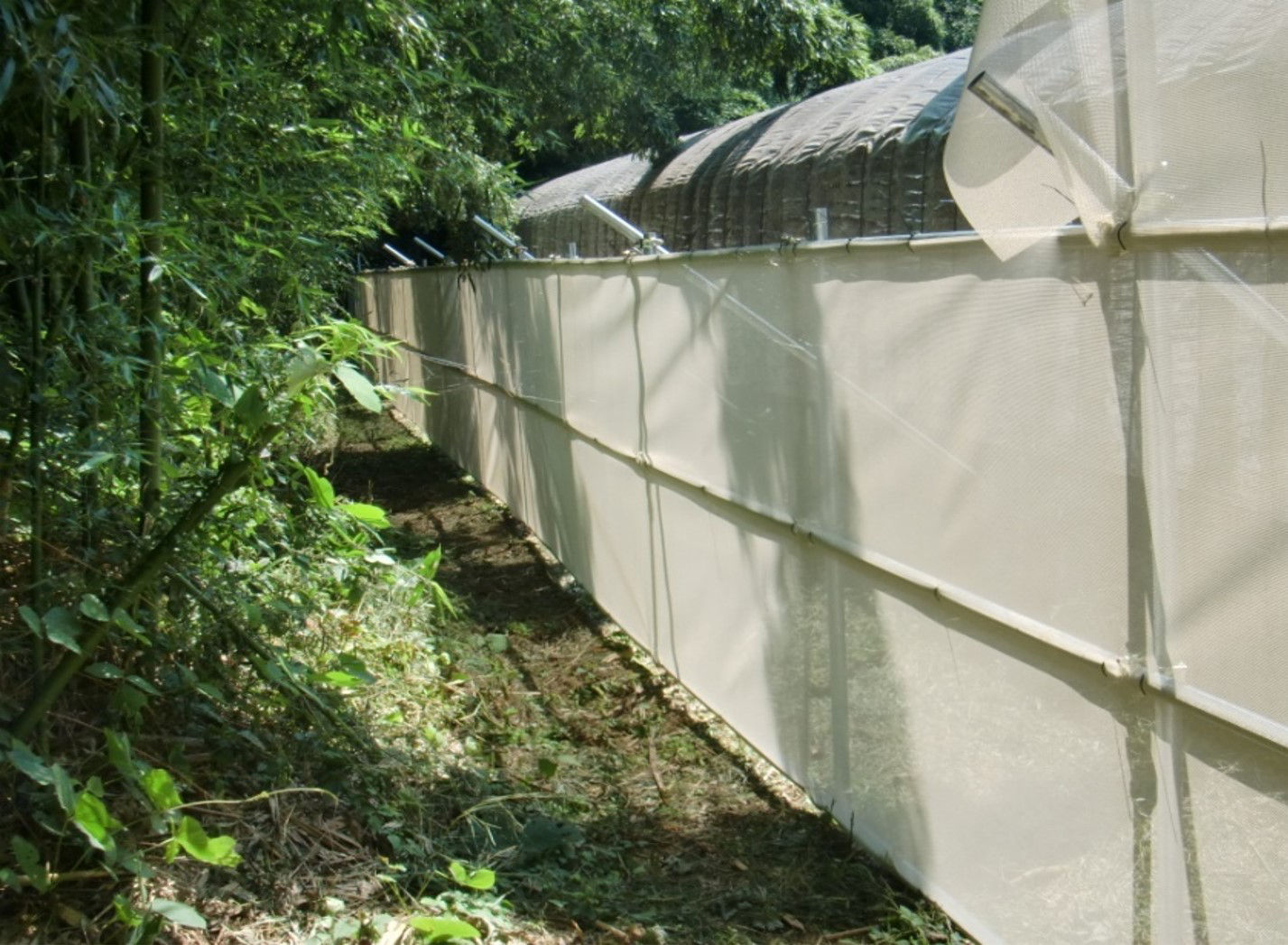

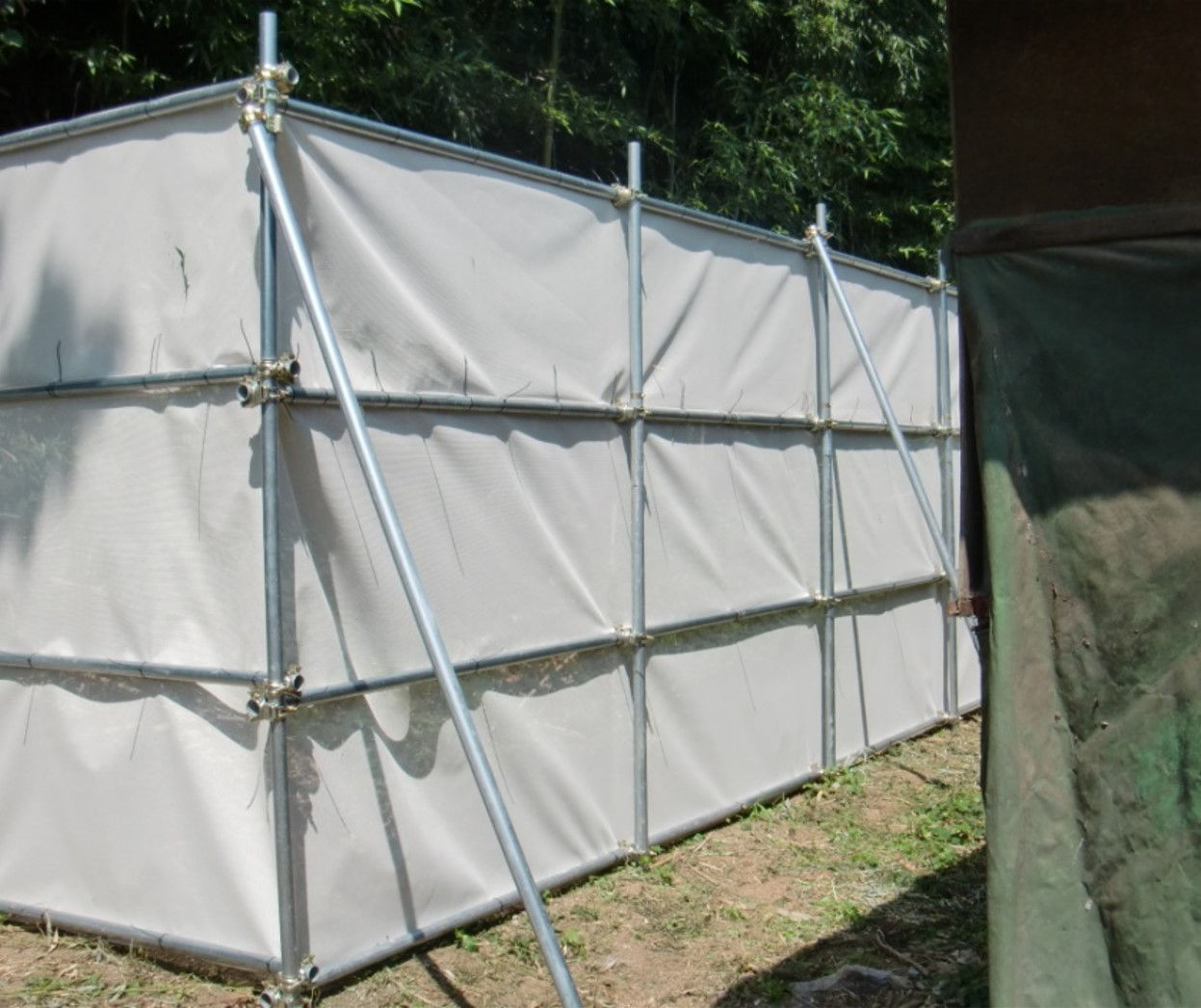

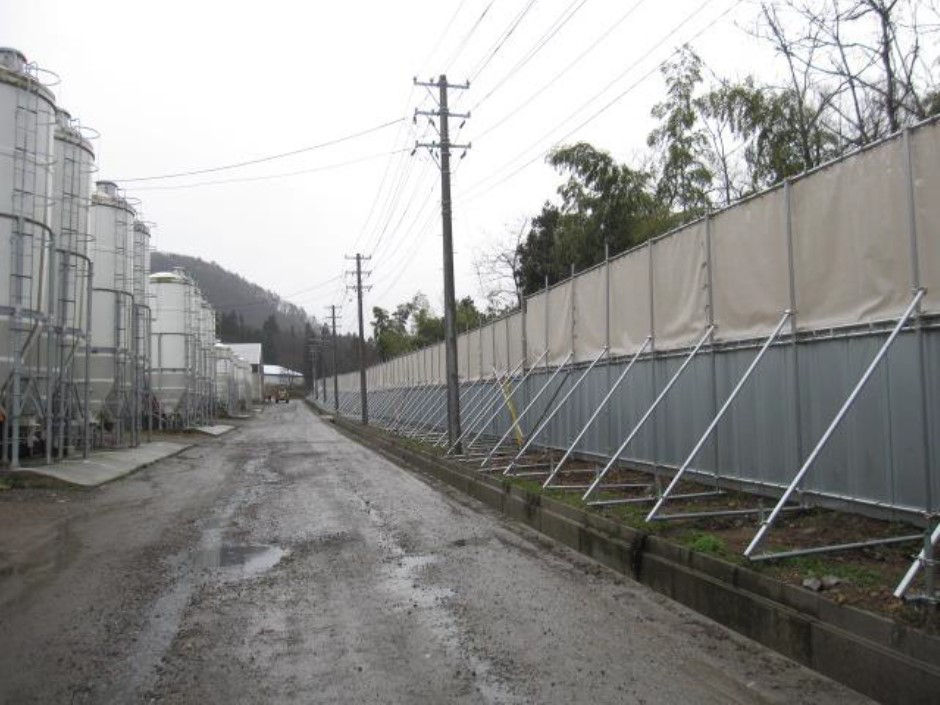

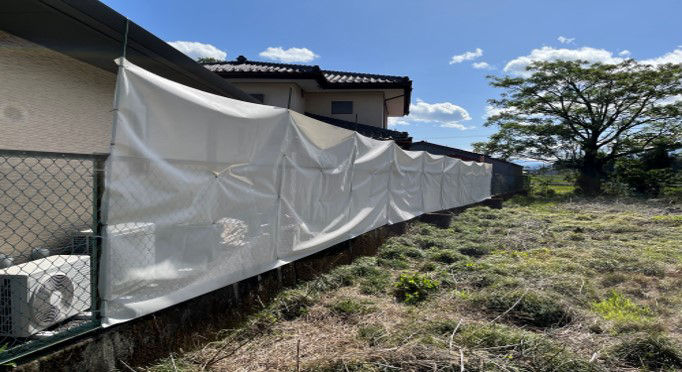

Example of wall-style installation
Odor decomposition is performed slowly by installing a barrier wall to allow odors to linger.

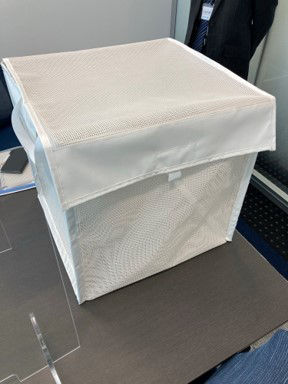

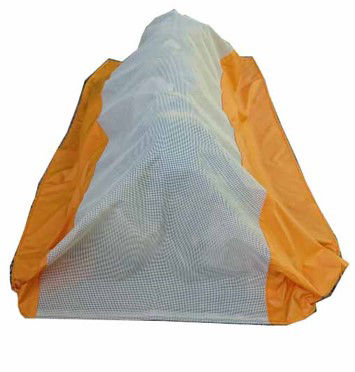

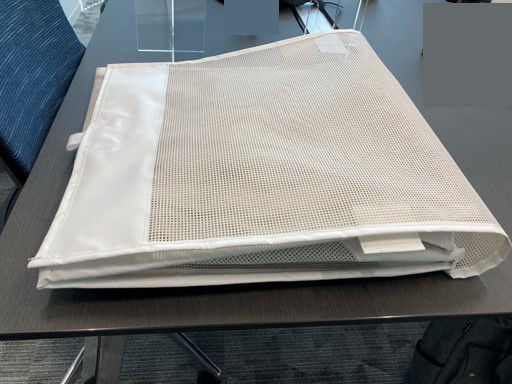

For food waste odor

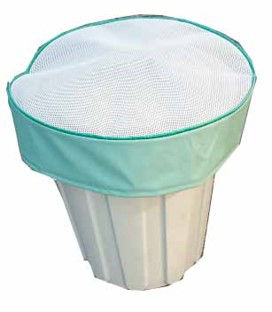

It is also effective to cover a garbage can or to cover a garbage bag that is put out on the balcony. Some say it has reduced the smell of children's diapers.

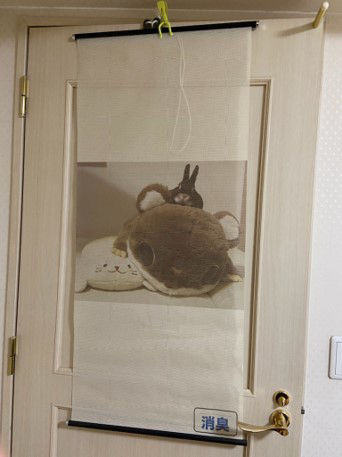

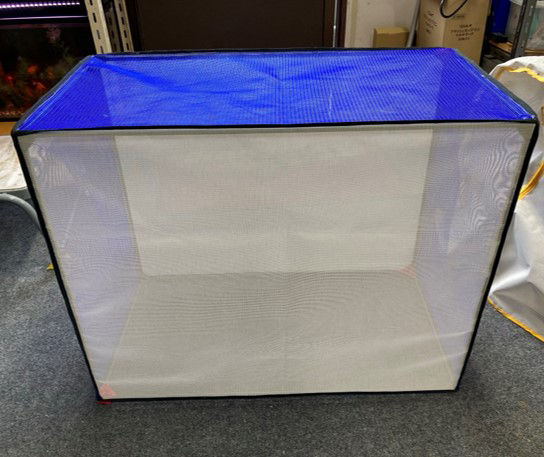

For pet odors
Hanging it above the pet's litter box, stretching it around the perimeter of the cage, or using it as part of a carry bag can also be effective. (Can be easily cut with scissors.)
Some people have also reported that simply covering the top of the aquarium with ammonia odor decomposition mesh has reduced the smell of fish.

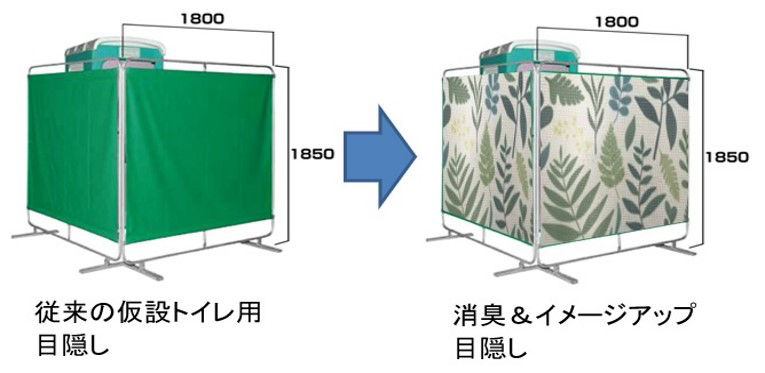

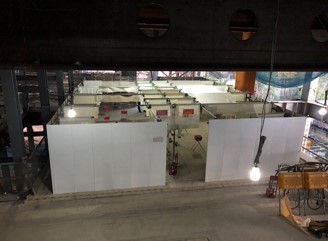

For construction site
It can be used for fences at construction sites and around temporary restrooms.

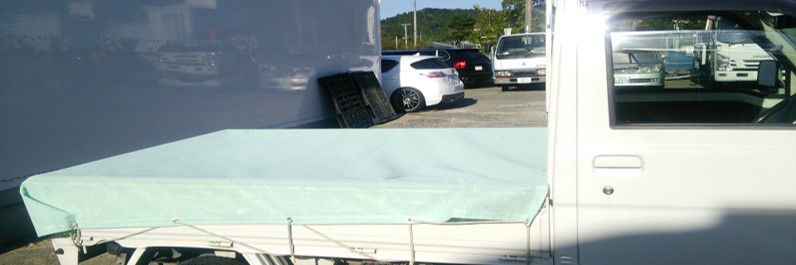

It is also suitable as a truck sheet for transporting odorous materials. And it helps reduce tobacco odor when installed in on-site smoking areas.
For other odors! Use it in many places!
There are many ways to use ammonia odor decomposition mesh, outdoors, around pets, in diapers, in smelly areas of the house, etc.

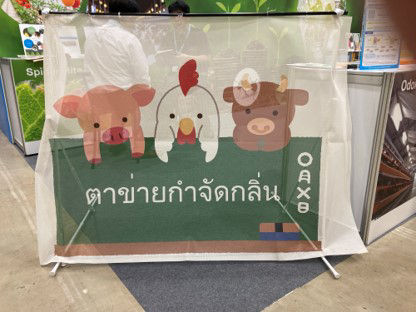

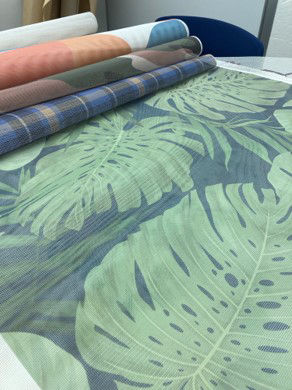

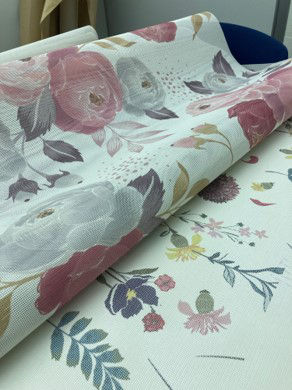

The design can also be printed the sheets.
Voice of the Handler
The smell of ammonia from the poultry houses was so bad that egg-laying and feeding operations had to contend with the odor, and the major issue was physical fatigue and work rate reduction, especially during the hot and cold seasons.
The staff of an agricultural high school who have installed the system have commented that "the ammonia odor has been clearly reduced," "the irritation to the eyes and nose has been lessened," and "students and staff can work more easily.
Inquiries about our products
For technical inquiries about this product, to prepare a quotation, or to request other information, please contact us using the inquiry form below.
Downloads
Various product materials are available for download.
Frequently Asked Questions
What kinds of odors does ammonia odor decomposition mesh help with?
Ammonia, Toluene, Trimethylamine, Isovaleric acid, Acetic acid, Acetaldehyde, Deodorizing effects have been confirmed with styrene, formaldehyde, and others.
It can be used for odor control in cattle, pig, and chicken coops, compost pens, and places where dogs, cats, and small animals are kept. It is expected to be used in a variety of other situations as it reduces odors from feces, garbage, diapers, etc.
If you have any other odor problems, please contact us.
What is the standard usage period for ammonia odor decomposition mesh?
It can be used indoors for 5 years and outdoors for 3 years.
The plasticizer may gradually ooze out and the surface may harden and crack, but the deodorizing and decomposition effects remain the same. Please be aware that if there is swaying and flapping, it may break off through cracks and fall.
How do I take care of ammonia odor decomposition mesh?
If soiled, remove dust and debris from the surface, wash and dry in the sun.
The surface may turn yellow or become stained brown with dirt and dust due to flies attracted by the odor. But washing and dry ing in the sun helps to recover the odor dissolving effect.
Even if the surface becomes sore after disinfection by soaking and washing, the deodorizing and decomposition effects do not change much. However, if the PVC resin on the surface melts or peels off to reveal polyester fiber fabric, the deodorant and decomposition effect in that area will be lost.
(*Effectiveness will be lost if the PVC resin peels off to reveal polyester fibers, even when washed in water.)
I would like to install ammonia odor decomposition mesh on my windows. How is it installed?
If the window is not directly stretched over the window, stretch it larger than the window. The window frame should be about 50 cm larger than the window frame on each side.
What wind speed has the highest decomposition capacity for bad odors?
Wind speed is less than 0.3m/s. The smoke from the incense sticks even fluttered in the air.
