Wiping cloth for high class clean area

Wiping cloths for clean areas made of Kuraray Co., Ltd.'s proprietary split fiber.
The flat and sharp cross section of the split fiber provides excellent wiping effect.
In addition, the cut section is heat-cut and cleaned with pure water to minimize dust emissions.
Suitable for wiping and maintenance in high-class clean rooms.

Business

Inquiry / Request for Quotation

Features ▼

Specifications ▼

Applications ▼

Features

Low-dust

Using long fibers with minimal fluff, minimize dust emissions from the wiper itself.

Low residual ions

Pure water cleaning is performed to minimize residual ions. Delivered in clean packs.

Excellent wipe-off effect

The ultra-fine, flat, sharp cross section of Kuraray Co., Ltd.'s proprietary split fiber provides excellent wiping performance due to the edge effect.

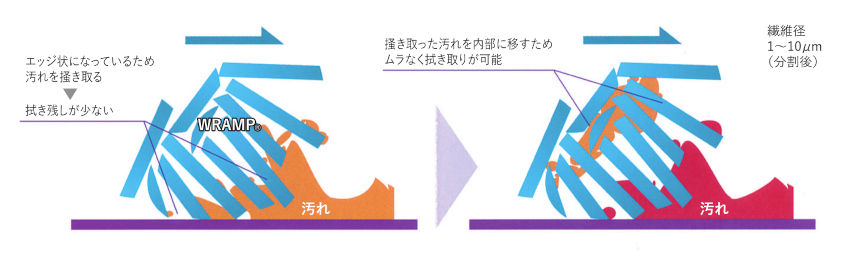

Image of wiping effect of ｗiping cloth for high class clean area

Image of wiping; Wiping is even as dirt is transferred to the inside of the surface. Fewer wipes are left behind.

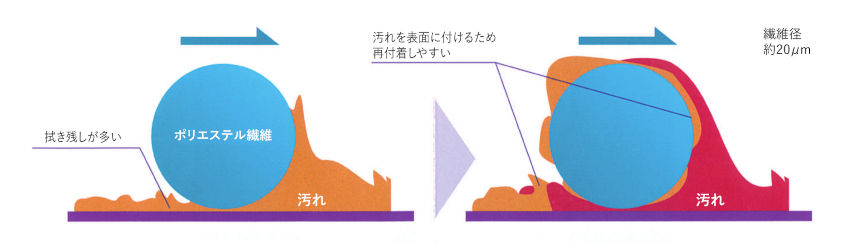

Image of wiping effect of general polyester fiber wiping cloth

Liquid absorption by capillary action

The capillary phenomenon unique to split fibers quickly absorbs water and oil.

High-density machining

Split fibers are knitted at high density and further processed for high shrinkage. Wiper surface is flattened and wiped evenly.

Wide range of chemical resistance

It is virtually impervious to ordinary acids, alkalis, and various organic solvents.

*Organic compounds: Alcohols / Hydrocarbons / Chlorinated hydrocarbons

*Inorganic compounds: Acids and Alkalis / Bleaching agents

Specifications

Physical Properties Data

*Measurement of Kuraray Co., Ltd. These are actual measured values and not guaranteed values.

1. Basic physical properties

	Unit		Measured value	Test procedure
Basis weight	g/㎡		224	JIS L 1018
Thickness	mm		0.54	JIS L 1018
Tear strength	(N)[kgf]	vertical	15.4 [1.57]	JIS L 1018 single tongue method
Tear strength	(N)[kgf]	horizontal	31.0 [3.16]	JIS L 1018 single tongue method
Tensile strength	(N)[kgf]	vertical	911 [92.9]	JIS L 1018 cut strip method
Tensile strength	(N)[kgf]	horizontal	389 [39.7]	JIS L 1018 cut strip method
Elasticity	%	vertical	134.6	JIS L 1018 cut strip method
Elasticity	%	horizontal	223.6	JIS L 1018 cut strip method
Abrasion strength	count		356	JIS L 1096 A-1 method (universal type method)
Shrinkage rate	%	vertical	1.1	JIS L 1018 A method, screen dried (flat dried)
Shrinkage rate	%	horizontal	-1.9	JIS L 1018 A method, screen dried (flat dried)

2. Absorbency

	Unit		Measured value	Test procedure
Drop method	s	water	1.8	JIS L 1018 method A (drop method)
Drop method	s	oil	less than 1.0	JIS L 1018 method A (drop method)
Virec method	mm	vertical	107	JIS L 1018 B method (virec method)
Virec method	mm	horizontal	95	JIS L 1018 B method (virec method)

3. Liquid retention

	Unit	Measured value	Test procedure
Water retention capacity	g/202.5 ㎠	7.674	JIS L 1018 B method Soaking time: 2 hours Measured 2 minutes after the drip runs out
Water retention rate	%	168.5

Unit

Measured value

Test procedure

Water retention capacity

g/202.5 ㎠

7.674

JIS L 1018 B method

Soaking time: 2 hours
Measured 2 minutes after the drip runs out

Water retention rate

168.5

4. Particle shedding

	Measured value		Test procedure
Number of particles generated	Grain diameter	Pieces/f³	Same as U.S. IES-PR-CC-003-87-T
	0.3μm	23
	0.5μm	12
	1.0μm	4
	2.0μm	2
	5.0μm	0

Measurements: Particle generation in cleaned products (23 cm x 23 cm, N number = 10)
Number of particles generated (pcs/f³) is a TOTAL value.

5. Ion elution

	Unit	Measured value	Test procedure
Na	μg/g	0.1	ICP emission spectrometry
K		0.1
Ca		0.1
Cl		0	ion chromatography

Standard

Size	Packing Style
24cm x 24cm	100 pcs/case (10 pcs x 10 bags)
19cm x 19cm	100 pcs/case (10 pcs x 10 bags)
12cm x 12cm	400 pcs/case (20 pcs x 20 bags)
6cm x 7cm	1,000 pcs/case (100 pcs x 10 bags)

Applications

For manufacturing processes of liquid crystal panels, semiconductors, and various types of disks
For the manufacturing process of magnetic tapes and lenses
In the pharmaceutical manufacturing process
For maintenance and various cleaning of equipment in clean rooms
During wiping before precision painting

*Please check this product before use according to the application.
