Radiation protection curtains made by MAVIG GmbH, Germany.
Radiation protection curtains designed to protect the lower extremities during catheterization procedures.
Type UT30 can be mounted on an operating table that can be tilted because each protective curtain is independent of the other.

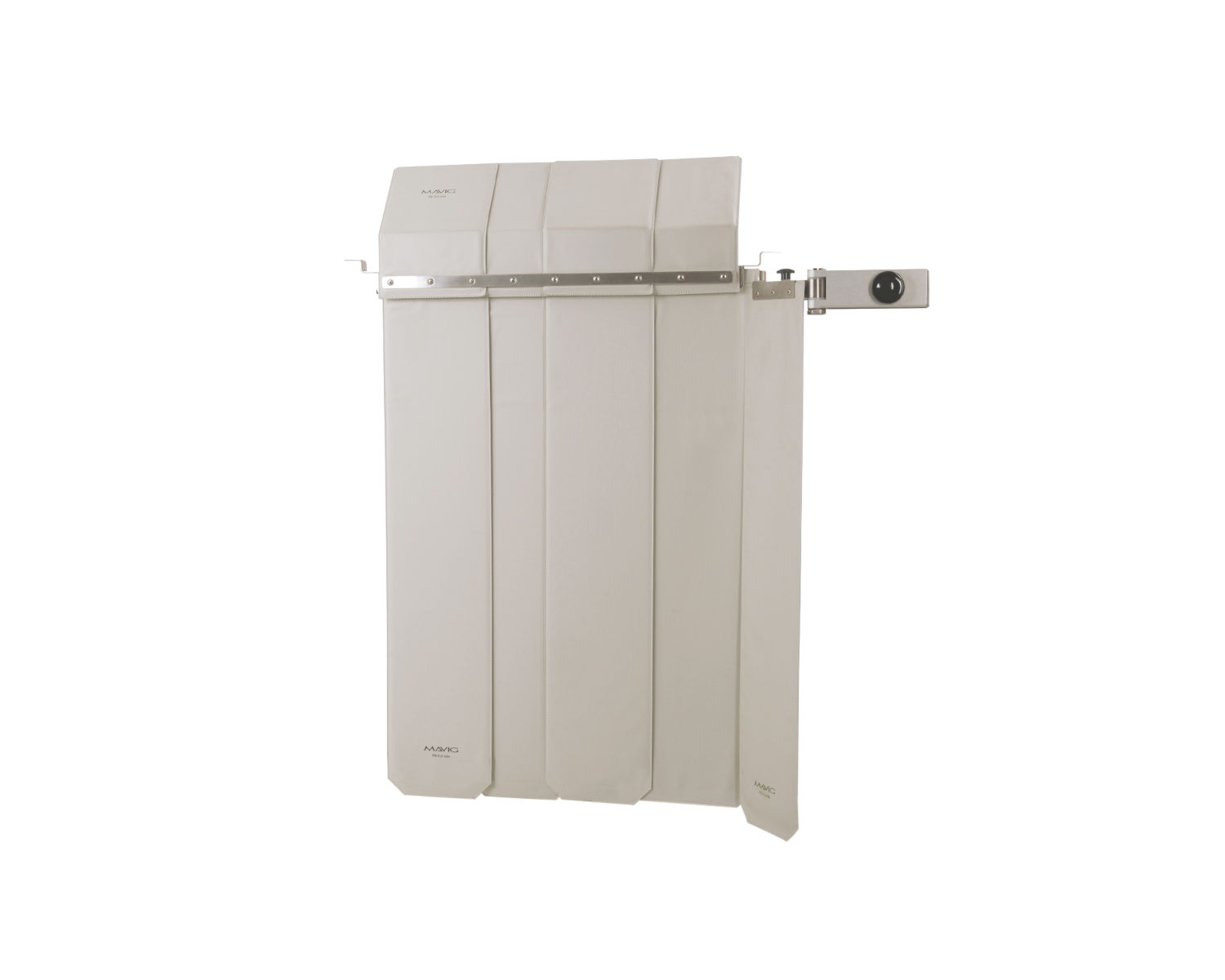

Type UT69 is an articulated protective curtain that can be moved to the optimal position.
With a lineup of products with different features, we can offer a wide range of radiation protection for the lower extremities during catheterization procedures.
Features
Compatible with surgical beds
The protective cloths are independent and can be freely positioned to accommodate changes in the angle of the bed.
Two joints are provided on the fixture to minimize the gap with the bed.
Specifications
Item, Size, Lead equivalent
Type UT30
| Item | Size | Lead equivalent | |||
|---|---|---|---|---|---|
| UT3060SET* | 290 x 600 mm / 1 sheet | 0.50mmPb | |||
| UT3075SET* | 290 x 750 mm / 1 sheet | ||||
| UT3090SET* | 290 x 900 mm / 1 sheet | ||||
*set of three
Type UT69
| Item | Size | Lead equivalent | |||
|---|---|---|---|---|---|
| UT6901 | Upper part* H250/170 × W600mm Lower part H900 × W800mm | 0.50mmPb | |||
| UT6902 | Upper part H250 × W600mm Lower part H900 × W800mm | ||||
| UT6904 | Upper part H170 × W600mm Lower part H900 × W800mm | ||||
*2 types included
Applications
Medical Field
Angiography suite
Radiation protection curtains to be attached to the bed rails. We have delivered our products to many angiography laboratories.
Hybrid operating room
It can also be mounted on tiltable surgical beds.
Inquiries about our products
For technical inquiries about this product, to prepare a quotation, or to request other information, please contact us using the inquiry form below.
Downloads
Various product materials are available for download.
