Radiation protection curtains to protect against radiation exposure to the lower extremities during catheterization procedures.
Three types of lead equivalent can be selected to meet various applications and situations.
Features
Lead equivalents selectable according to application
Lead equivalent can be selected from 0.25 mmPb, 0.35 mmPb, and 0.5 mmPb.
Can be attached on both side rails of the bed
By reversing the mounting hardware, it can be attached on both bed rails.

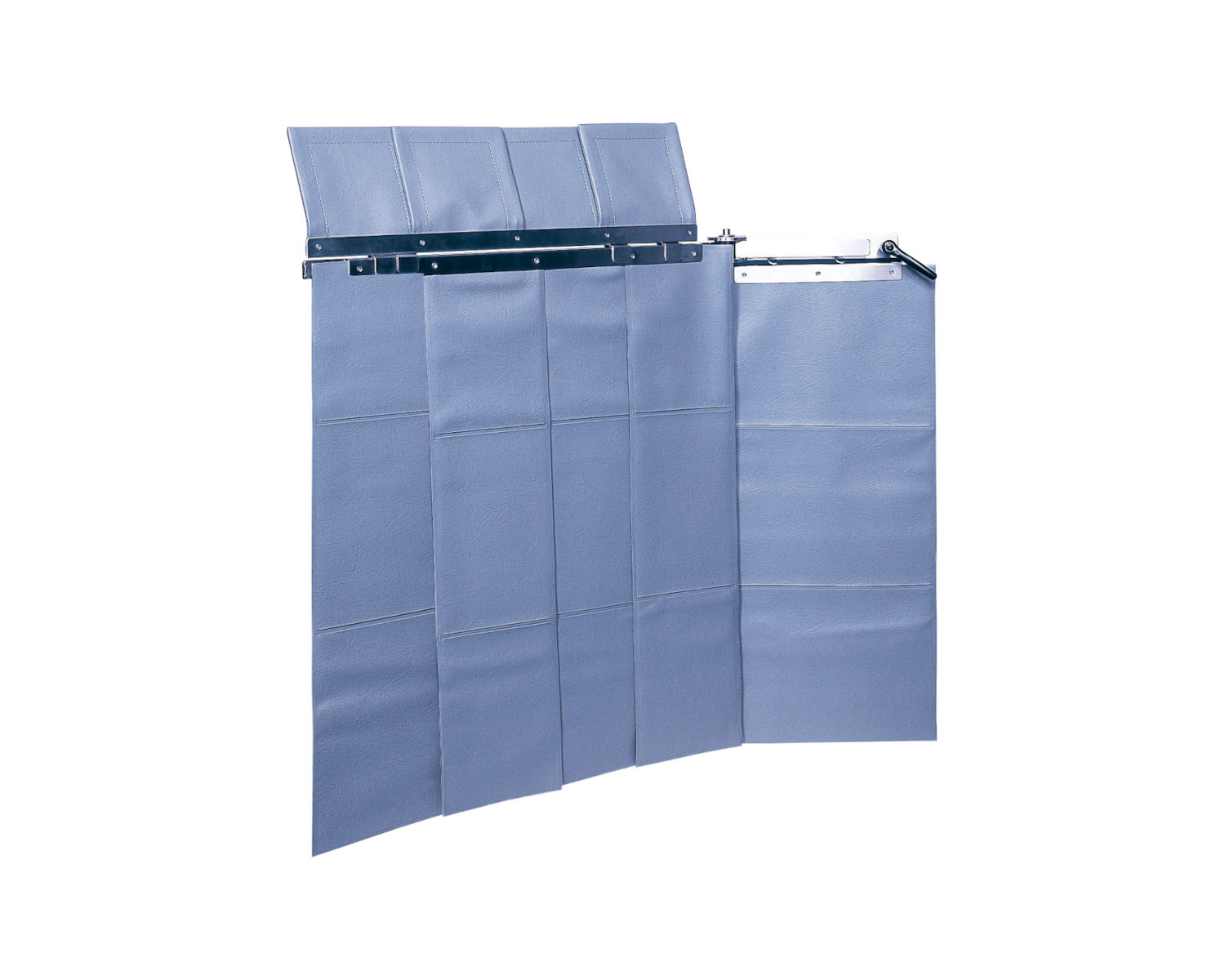

With upper protection
The upper protection can be selected with or without upper protection (two types with different heights are included with the upper protection).
Specifications
Item, Size, Lead equivalent
| Model | Item | Size (Protective part) | Lead equivalent | |||
|---|---|---|---|---|---|---|
| SA | SA-25 | Upper part: Lower part: | 0.25mmPb | |||
| SA-35 | 0.35mmPb | |||||
| SA-50 | 0.50mmPb | |||||

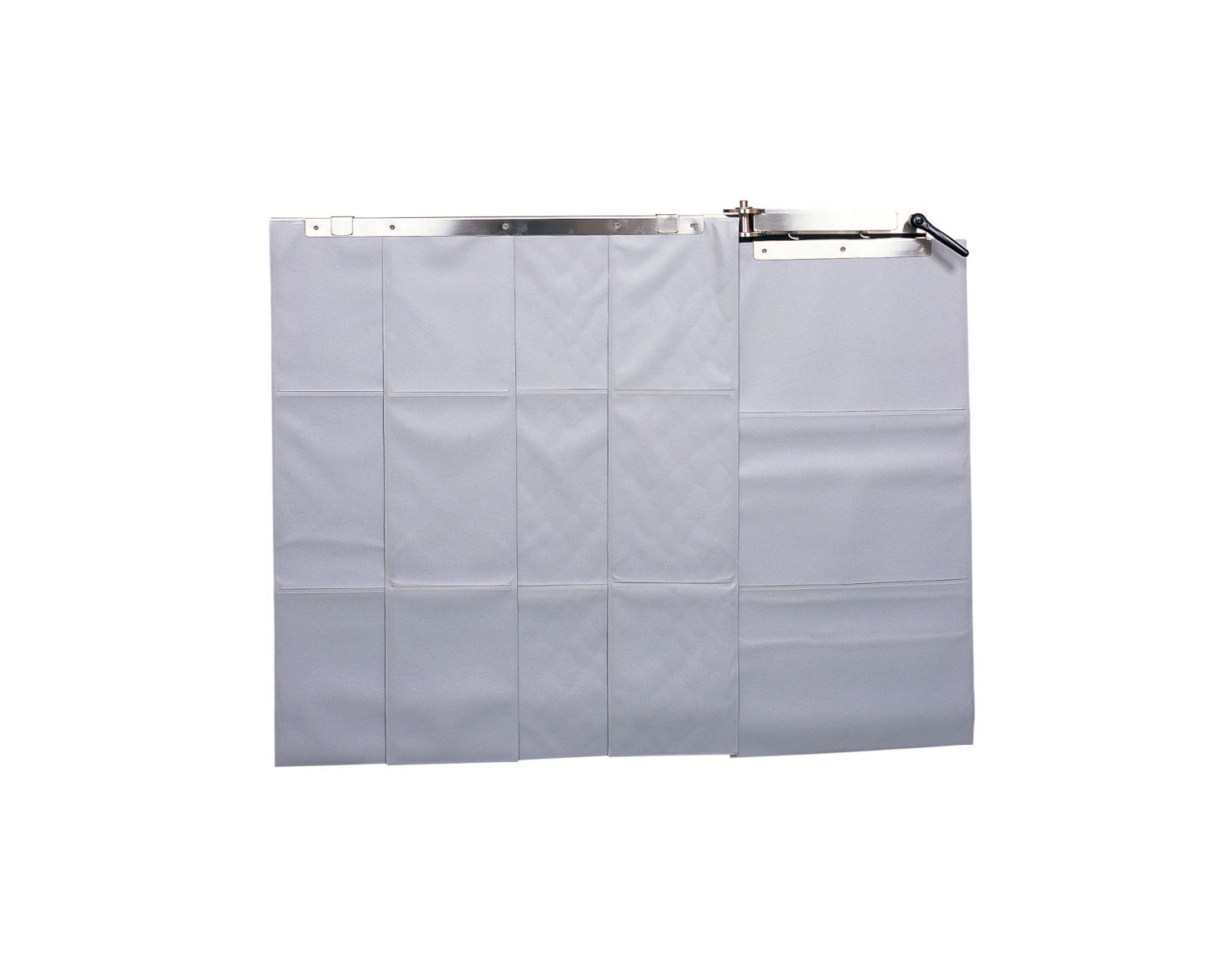

| SAU | SAU-25 | Lower part: H750 x W950mm | 0.25mmPb | |||
| SAU-35 | 0.35mmPb | |||||
| SAU-50 | 0.50mmPb | |||||
Applications
Medical Field
Angiography suite
Radiation protection curtains to be attached to the bed rails. We have delivered our products to many angiography laboratories.
X-ray fluoroscopy room
Used in combination with an under-tube fluoroscopy system, it reduces radiation exposure to the lower extremities under X-ray fluoroscopy.
