Articulated model that corresponds to the movement of the imaging device and surgeon.
Radiation protection curtains to protect against radiation exposure to the lower extremities during catheterization procedures.
The arm to which the protective curtain is attached is articulated, allowing for optimal positioning in accordance with the movement of the X-ray system and surgeon.
Features
Articulated arms
Each arm of the protective curtain has its own joints, allowing adjustment of the protective range according to the position of the imaging device (C-arm), the bed, and the surgeon.
With upper protection
You can select with or without upper protection.
Specifications
Lead equivalent
Lead equivalent 0.35 mmPb
Color
blue
Size
| Model | Size (Protective part) |
|---|---|

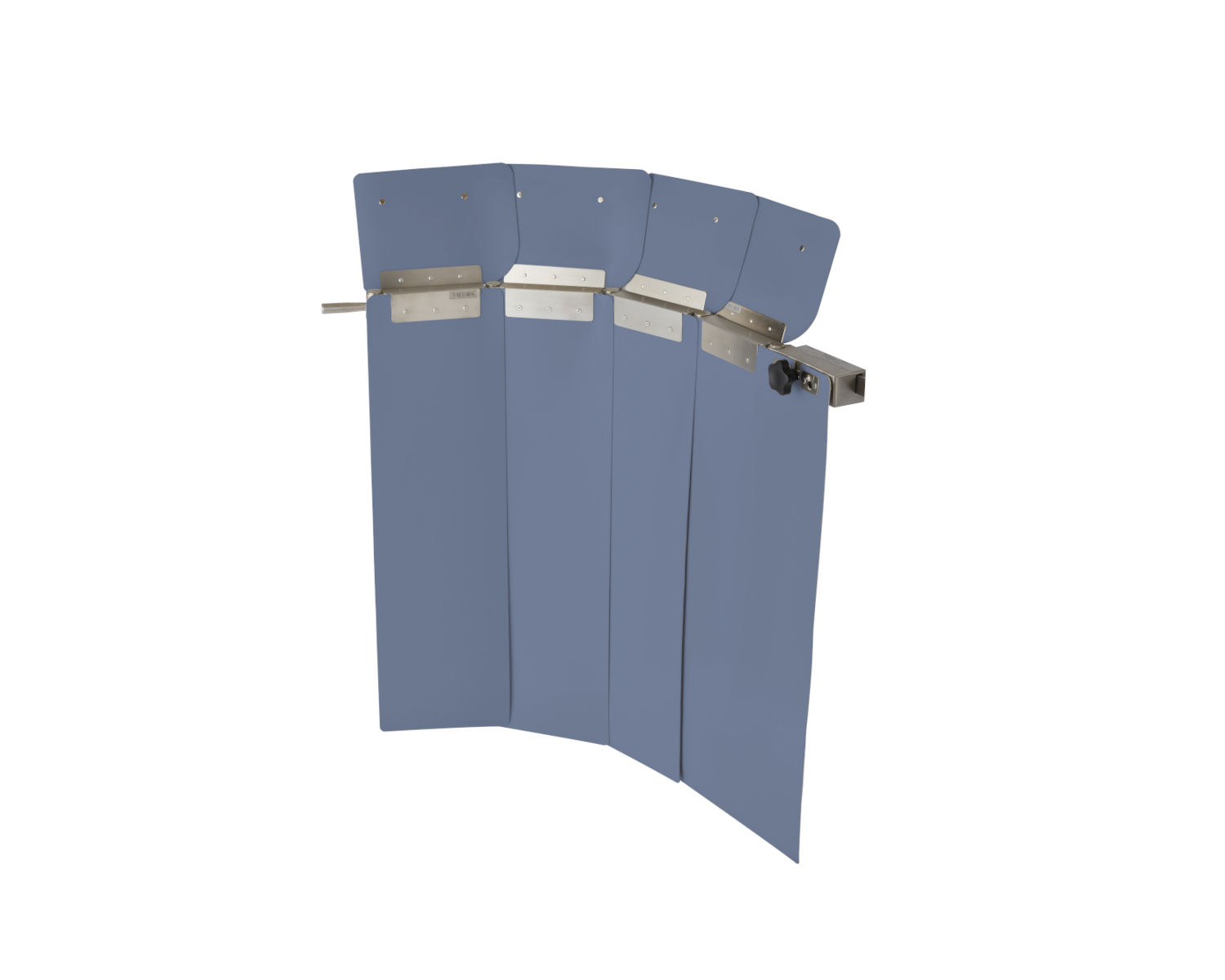

| BJ-35 | Upper part: H180 x W780 mm Lower part: H750 x W875 mm |

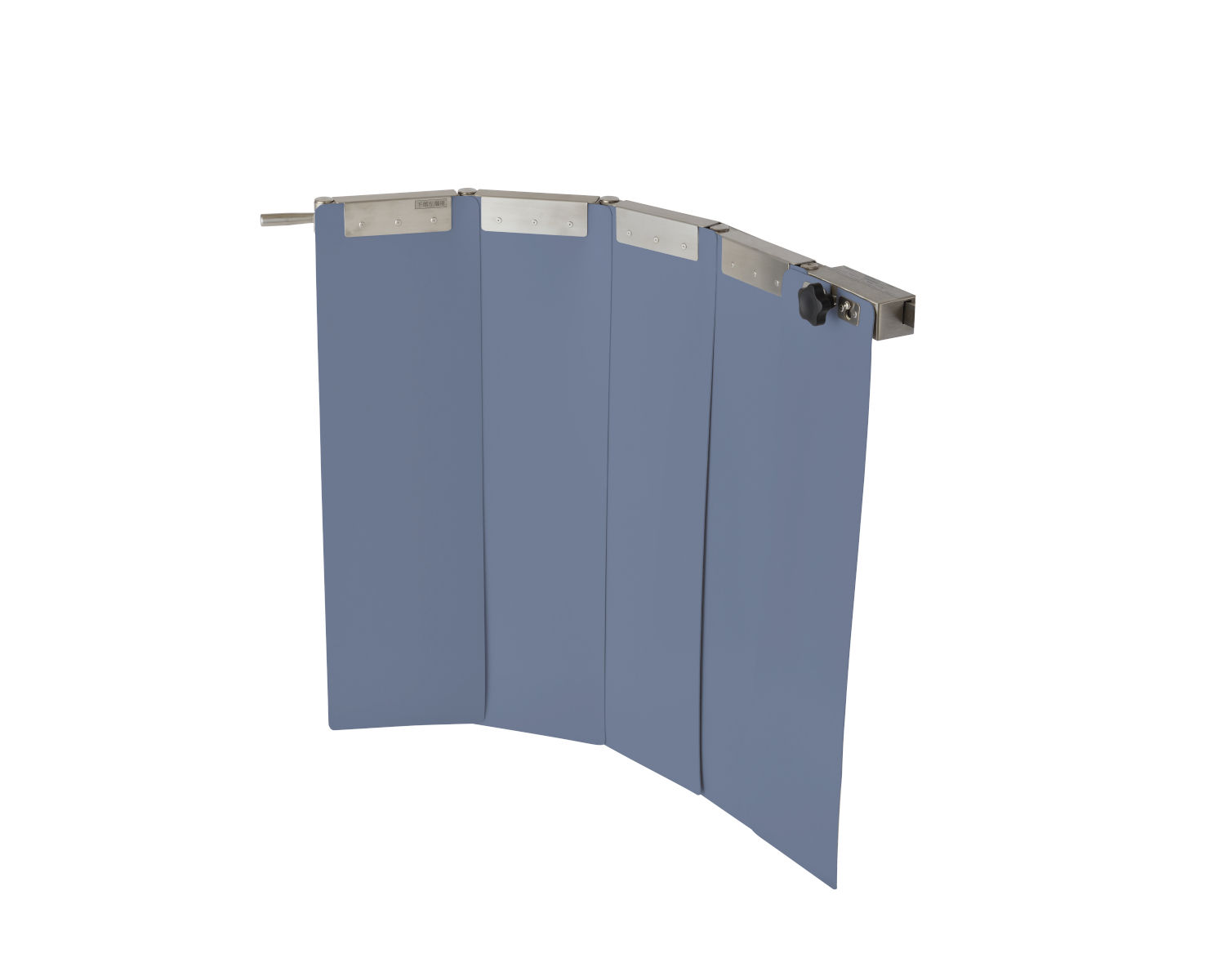

| BJ-35U | Lower part: H750 x W875 mm |
Applications
Medical Field
Angiography suite
Radiation protection curtains to be attached to the bed rails. We have delivered our products to many angiography laboratories.
X-ray fluoroscopy room
Used in combination with an under-tube fluoroscopy system, it reduces radiation exposure to the lower extremities under X-ray fluoroscopy.
Inquiries about our products
For technical inquiries about this product, to prepare a quotation, or to request other information, please contact us using the inquiry form below.
Downloads
Various product materials are available for download.
