A monitor suspension device manufactured and sold by Auto System Co., Ltd. We are developing a new model with improved operability over conventional monitor suspension systems.
The monitors can be set up for a variety of clinical situations and provide workspace. In the mainstream of larger monitors and diverse arrangements, smooth operability has been achieved by securing the stroke in the upward direction of the arm.
It can also be combined with radiation protection boards from Kuraray Trading Co., Ltd.
Features
Wide range of motion with long arm

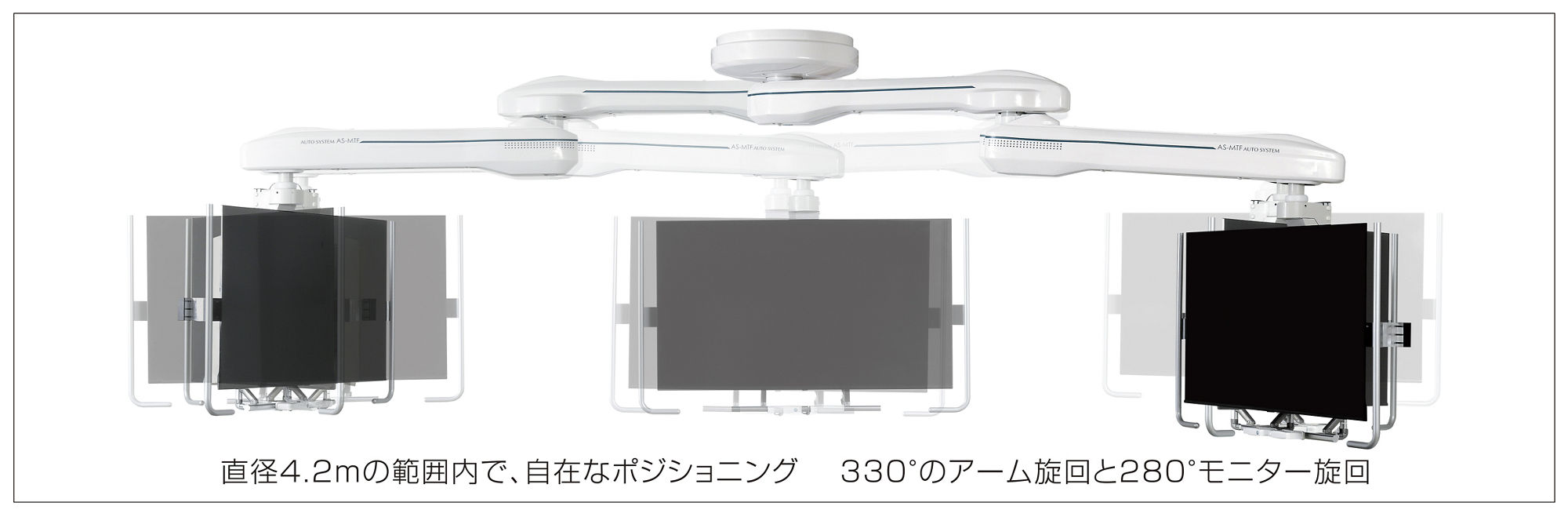

Flexible positioning within a diameter range of 4.2m. The 330° arm swivel and 280° monitor swivel allow the monitor to be moved to the desired position.
Can be combined with radiation shielding plate and illuminator
The monitor suspension unit and radiation shielding plate or illuminator, which have been separately mounted on the ceiling, can be coaxially mounted.
This reduces the cost of ceiling construction.
Specifications
Choose from two types: ceiling-fixed or 2-way rail type.
Basic Performance
| AS-MTF-W | AS-MTF-FE | ||||||
|---|---|---|---|---|---|---|---|
| Basic Specifications | Type | 2-way rail type | Ceiling-fixed type | ||||
| Vertical movement of monitor | 500m | 500m | |||||
| Monitor swivel | 280° | 280° | |||||
| Gross weight of monitors mounted | Less than 40 kg | Less than 40 kg | |||||
| Left-right movement | 2,100mm | ー | |||||
| Forward/backward movement | 800mm | ー | |||||
| Arm turning radius | control arm | 1,100mm | 1,100mm | ||||
| extension arm | ー | 1,000mm | |||||
| Arm swivel angle | control arm | 330° | 330° | ||||
| extension arm | ー | 330° | |||||
| Cabling | Inside arm | Inside arm | |||||
| Standard equipment | One-touch grip | ○ | ○ | ||||
| Accessory Covers | ○ | ○ | |||||
| Tilting mechanism | ○ | ○ | |||||
| Option | Protective board/non-shadow light combination | ○ | ○ | ||||
| Status View (AS-MTF-SV) | ○ | ○ | |||||
| Cable Carrier（AS-MTF-CC) | ○ | ー | |||||
| Side grip (AS-MTF-SG) | ○ | Standard equipment | |||||
| Rail Extension | ○ | ー | |||||
| Inner lock switch | ○ | ー | |||||
*Specifications are subject to change for improvement.
[Option] Status View (AS-MTF-SV)

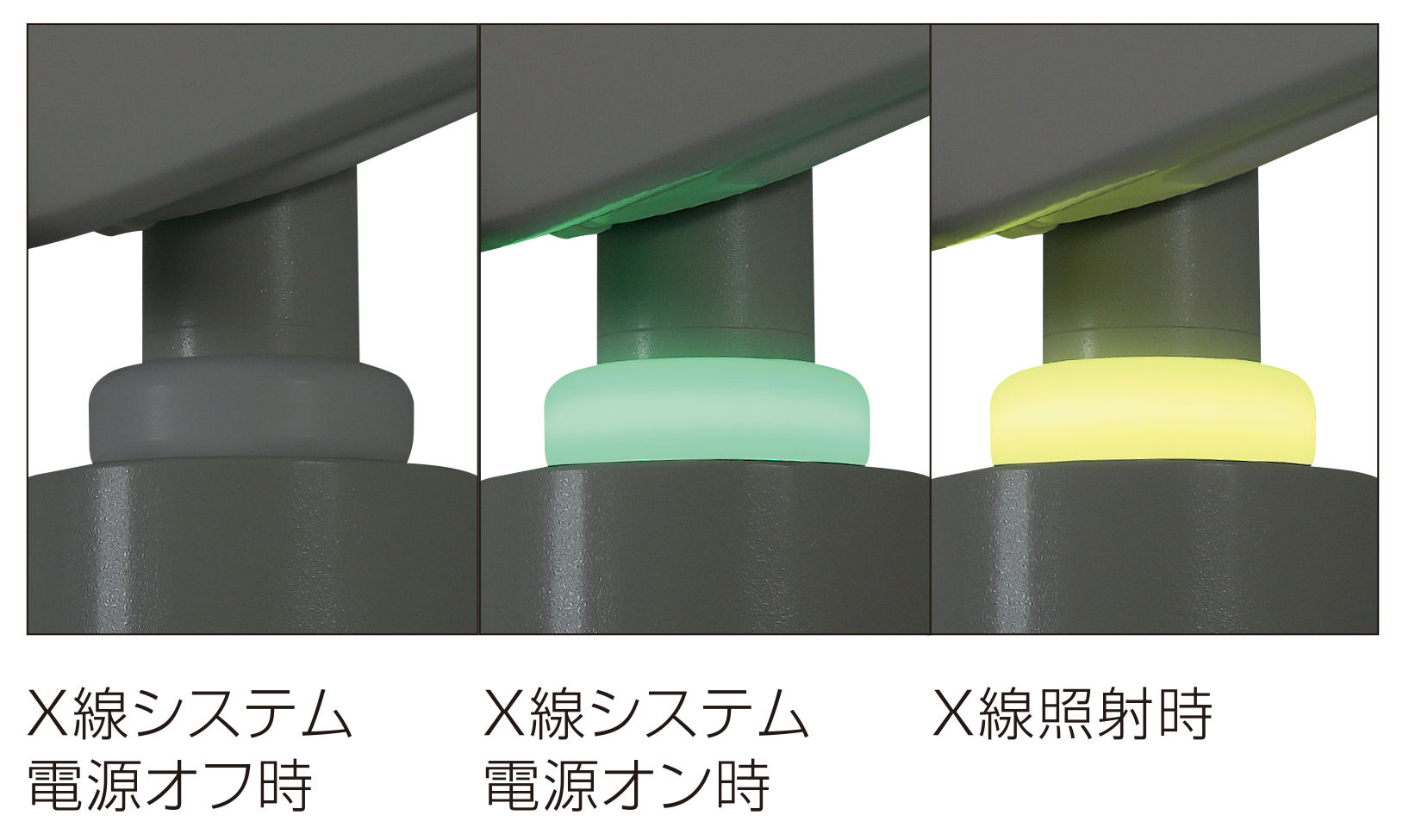

The LED is turned on by a signal from the X-ray system. The wide viewing angle allows for easy viewing from any position during examination and treatment.
*Connection may not be possible depending on the signal type with the main unit of the X-ray system.
[W-type Only Option] Side Grip (AS-MTF-SG)

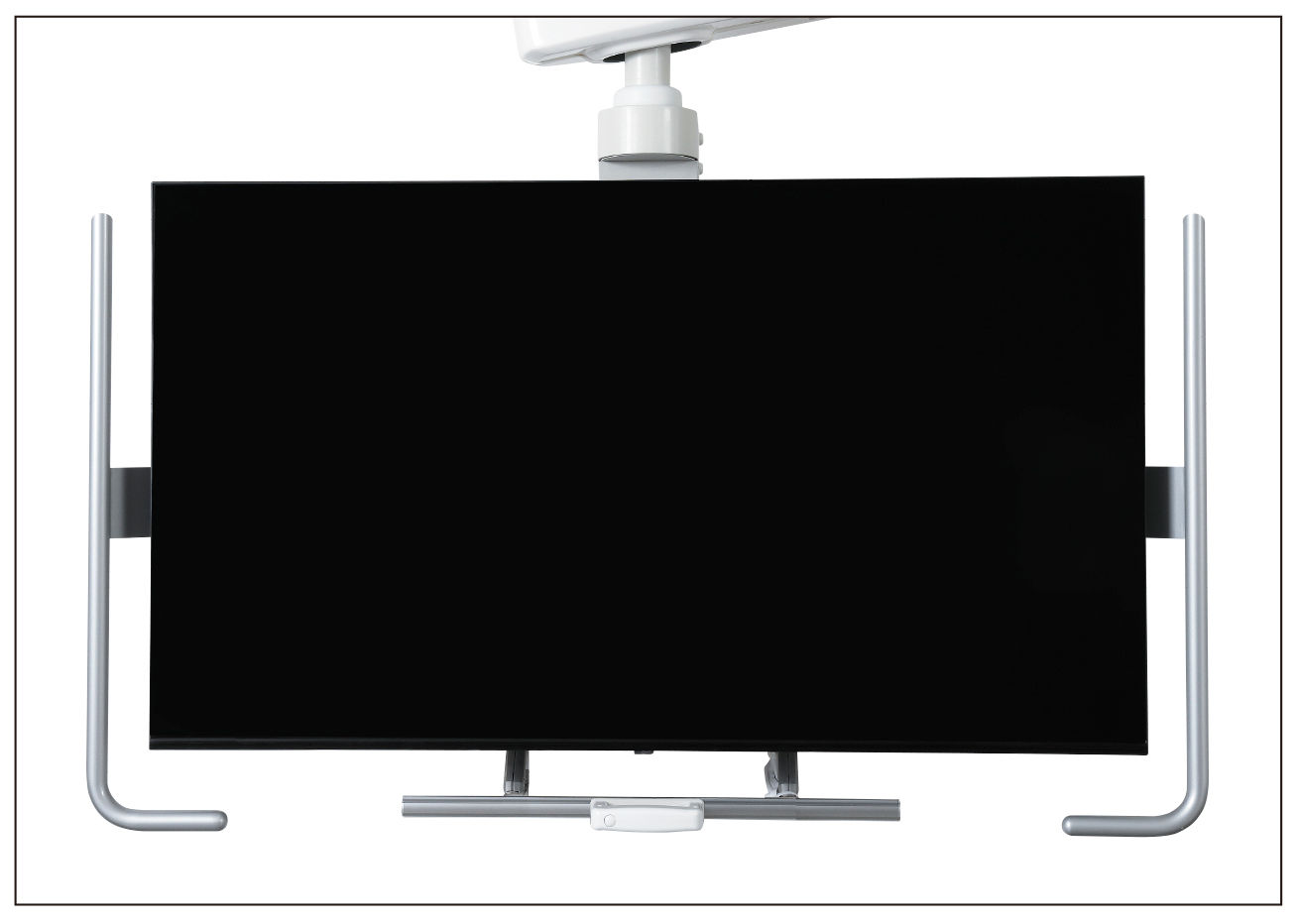

The operating grips are located on the sides of the monitor.
By holding the grip when rotating the monitor, the desired position can be set securely.
*Ceiling fixed type: standard equipment, rail type is optional.
[W-type Only Option] Cable Carrier (AS-MTF-CC)

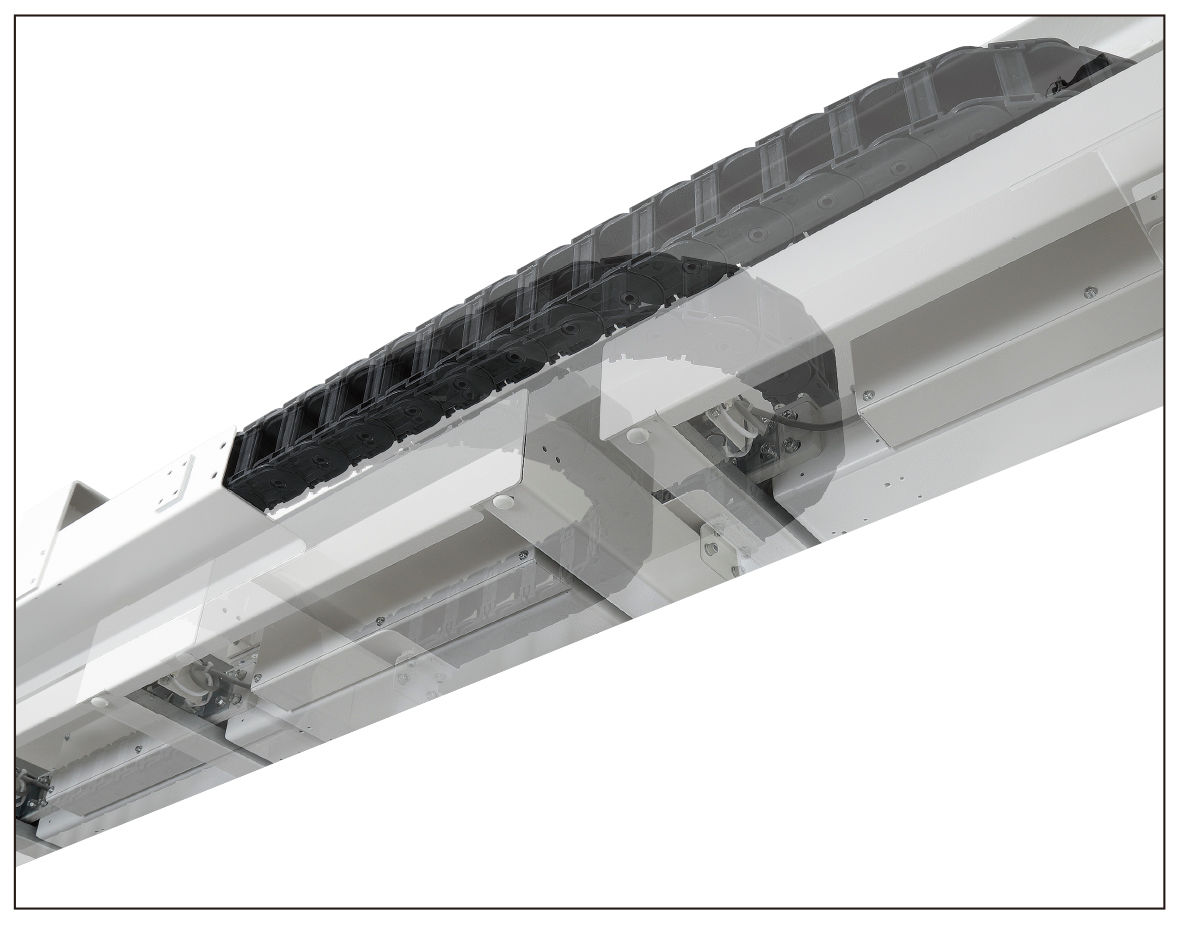

Cables are stored in a chain-like movable body to reduce stresses such as twisting and pulling of cables caused by equipment movement.
Also, compared to the standard curtain system, the space under the ceiling looks cleaner and does not interfere with visibility in the imaging room.
Applications
Medical Field
X-ray fluoroscopy room
The combination of the monitor suspension and radiation protection plate saves space in the X-ray fluoroscopy room.
In addition, the ceiling construction and installation work that used to be performed separately can be integrated, enabling cost reductions.
