Kuraray Trading Co., Ltd. manufactures and sells lead-containing acrylic plates developed by Kuraray Co., Ltd. that shield against radiation as protection shields (general medical devices).
KYOWAGLAS-XA™ X-ray protection shields are medical devices made of lead-containing acrylic with radiation shielding properties that are suspended from the ceiling. The long arm can be used to cover a wide protective area.
The A Series covers a wide protective area.
Features

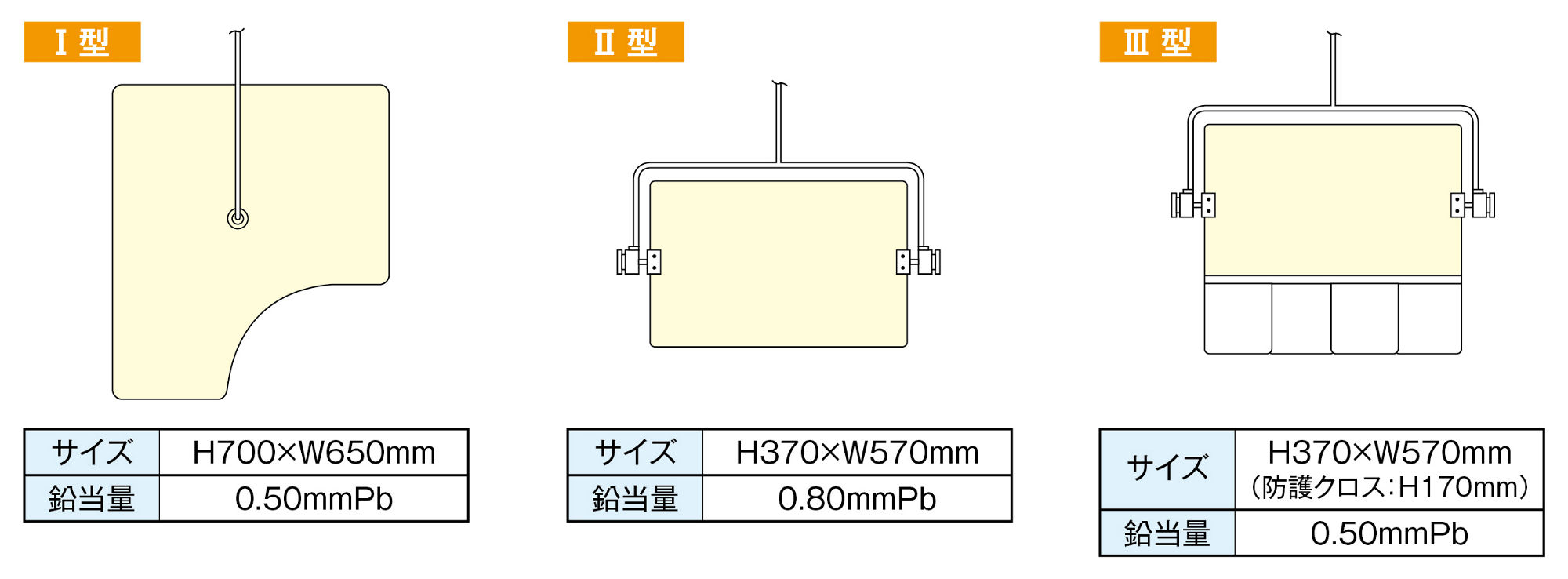

Shape of protection shield can be selected
The shape of the protective shield can be selected from three types depending on the technique and application.
Can be combined with illuminator
The combination of a protection shield and a shadowless light supports the procedure.

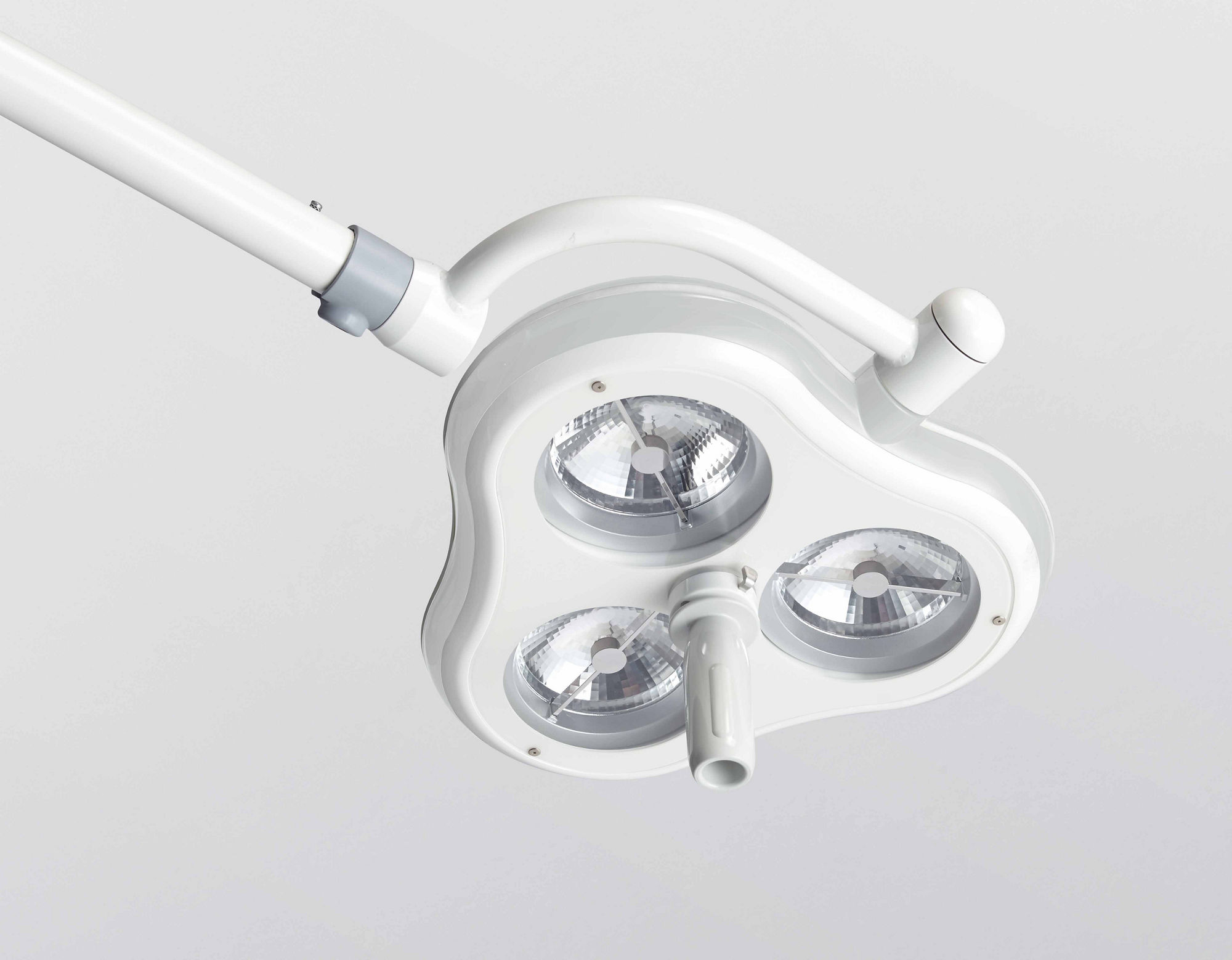

CLOVER SERIES (Item number: 11B2X10036000012)
Manufactured and distributed by Yamada Medical Lighting Co., Ltd.
Rail type or direct-attach type can be selected
You can choose the method of ceiling installation depending on the layout of your treatment room and procedures.
| Model | Ceiling installation method | Lighting equipment | |||
|---|---|---|---|---|---|

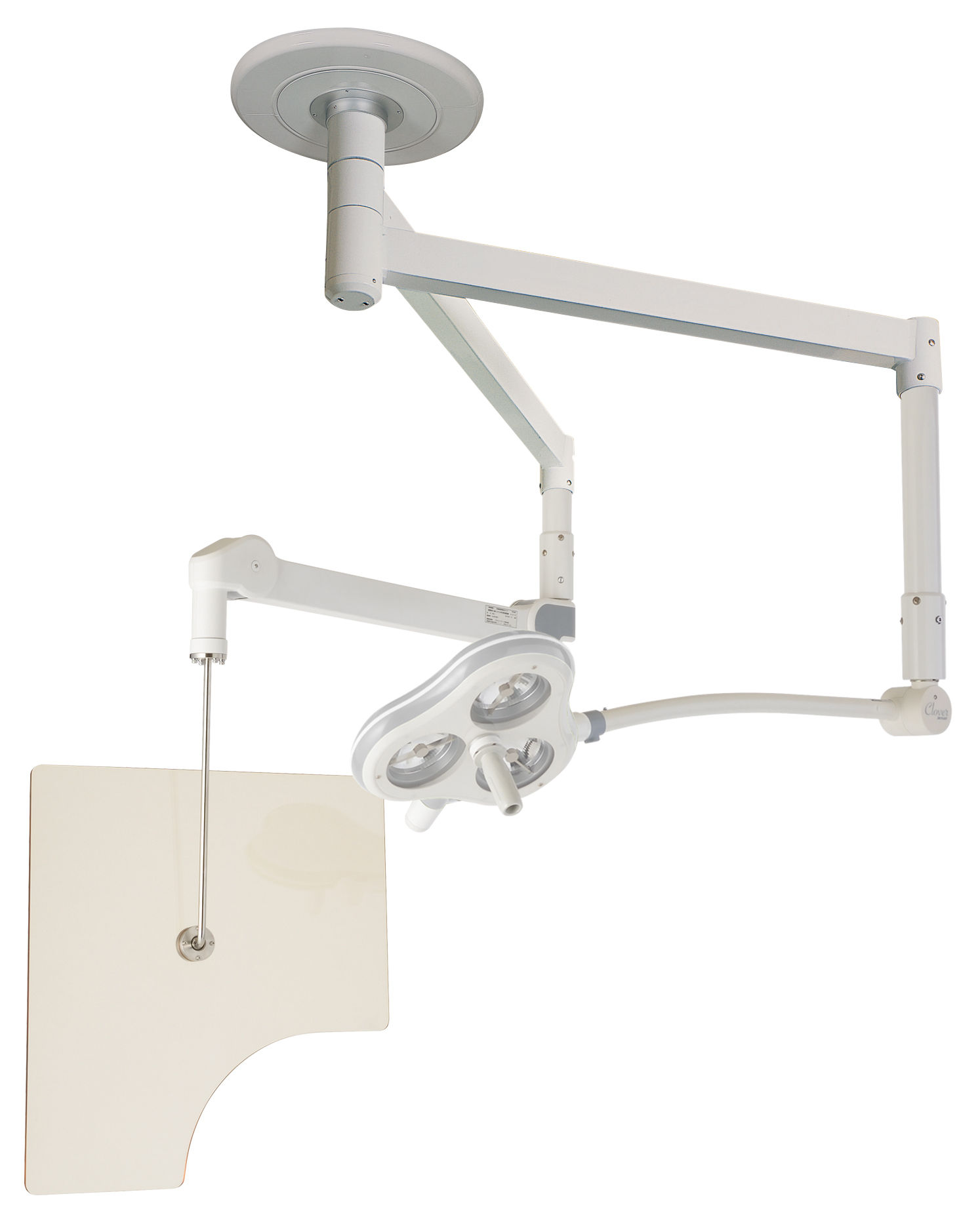

| AF21 | Direct-attach type | × | |||
| AFL21 | ○ | ||||

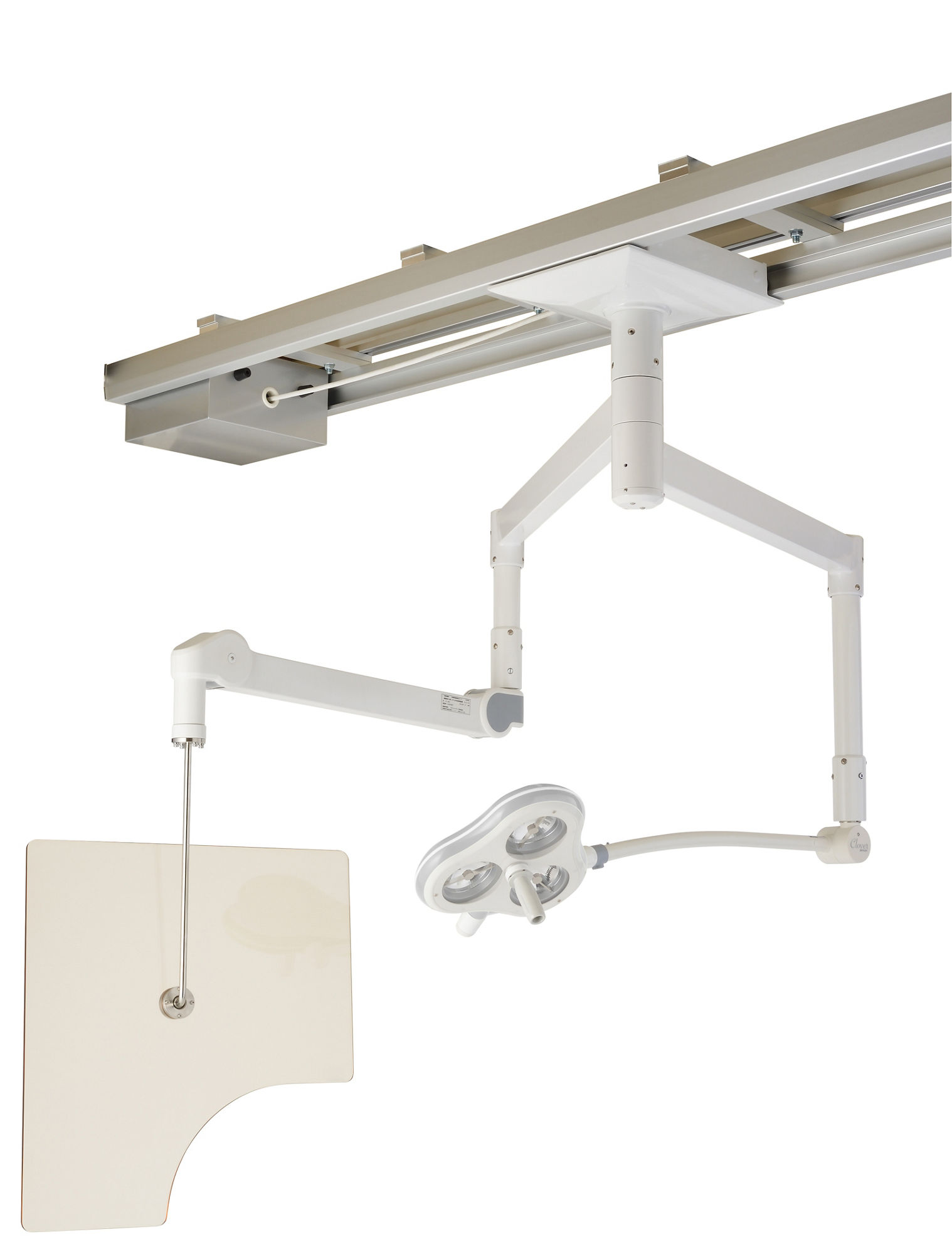

| NS21 | Rail type | × | |||
| NSL21 | ○ | ||||

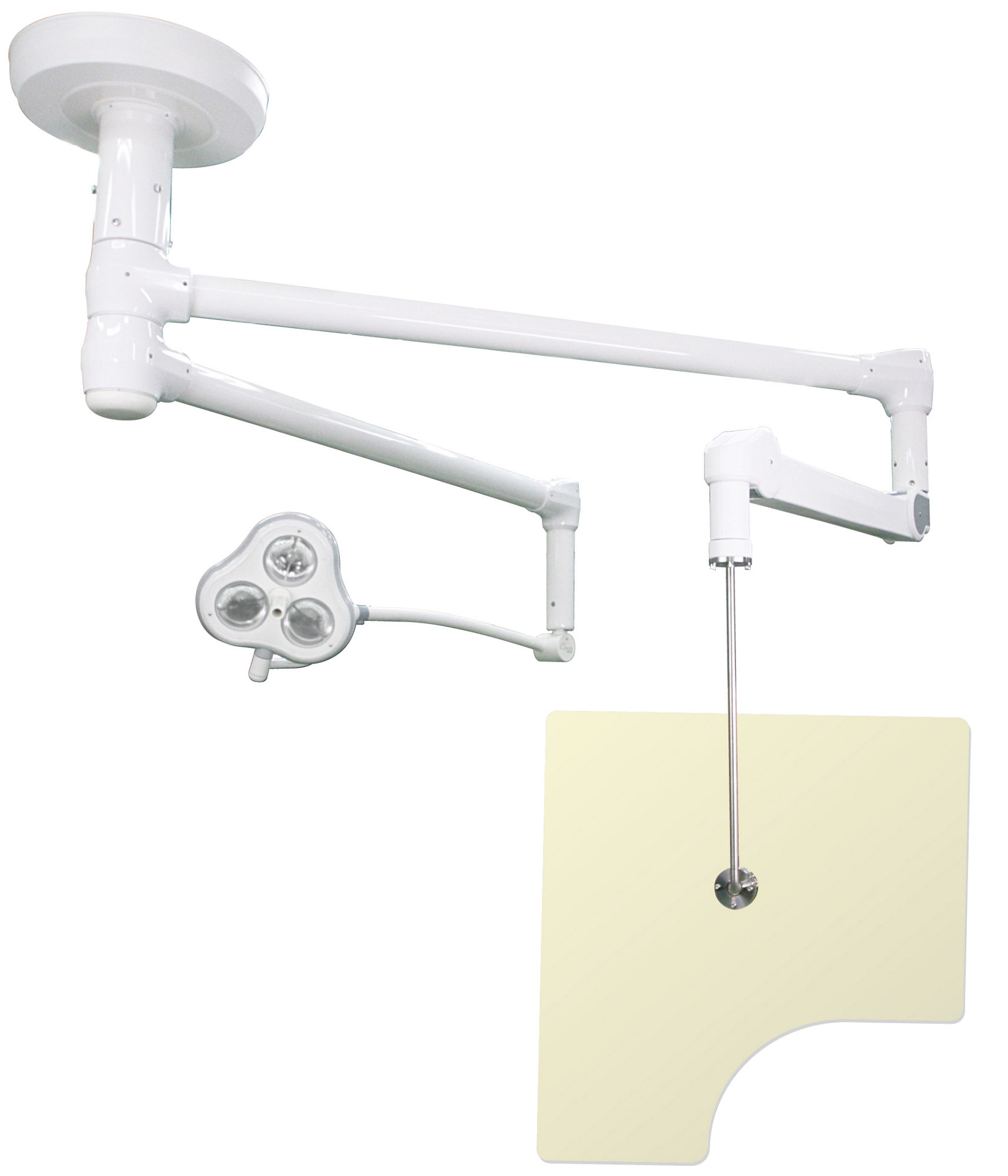

Long arm type
The long arm type has a longer arm than the conventional A series, allowing the approach of protective shields and illuminators to positions that were previously unreachable.
The long arm length makes it possible to approach the radiation shielding plate to the bunk from outside of the ceiling suspension such as monitors and illuminators on the ceiling.
[Applications]
- Angiography suite
- Hybrid operating room
Specifications

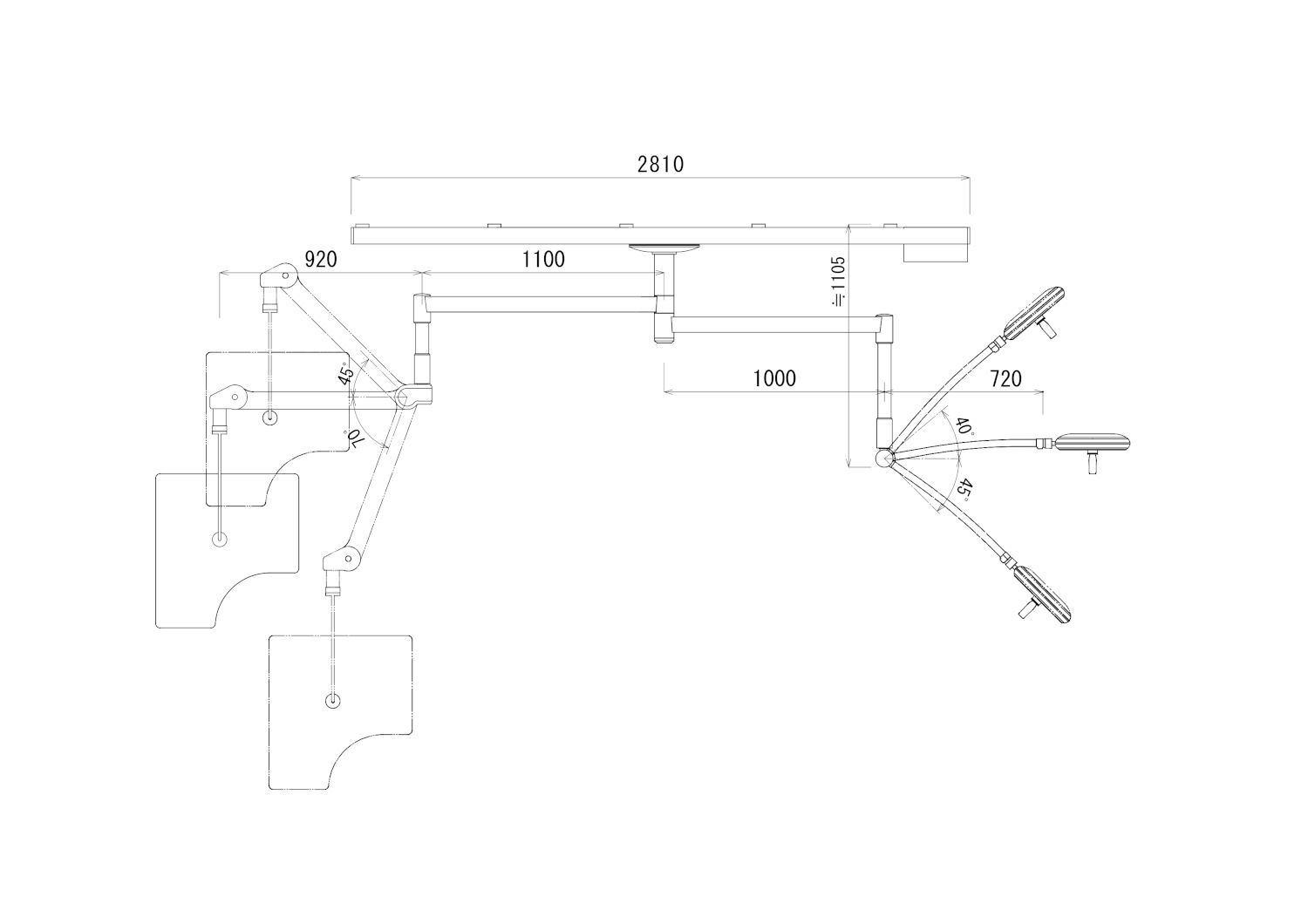

Model: NSL21 (traveling type, with illuminator)
*State the VST length on the illuminator side.

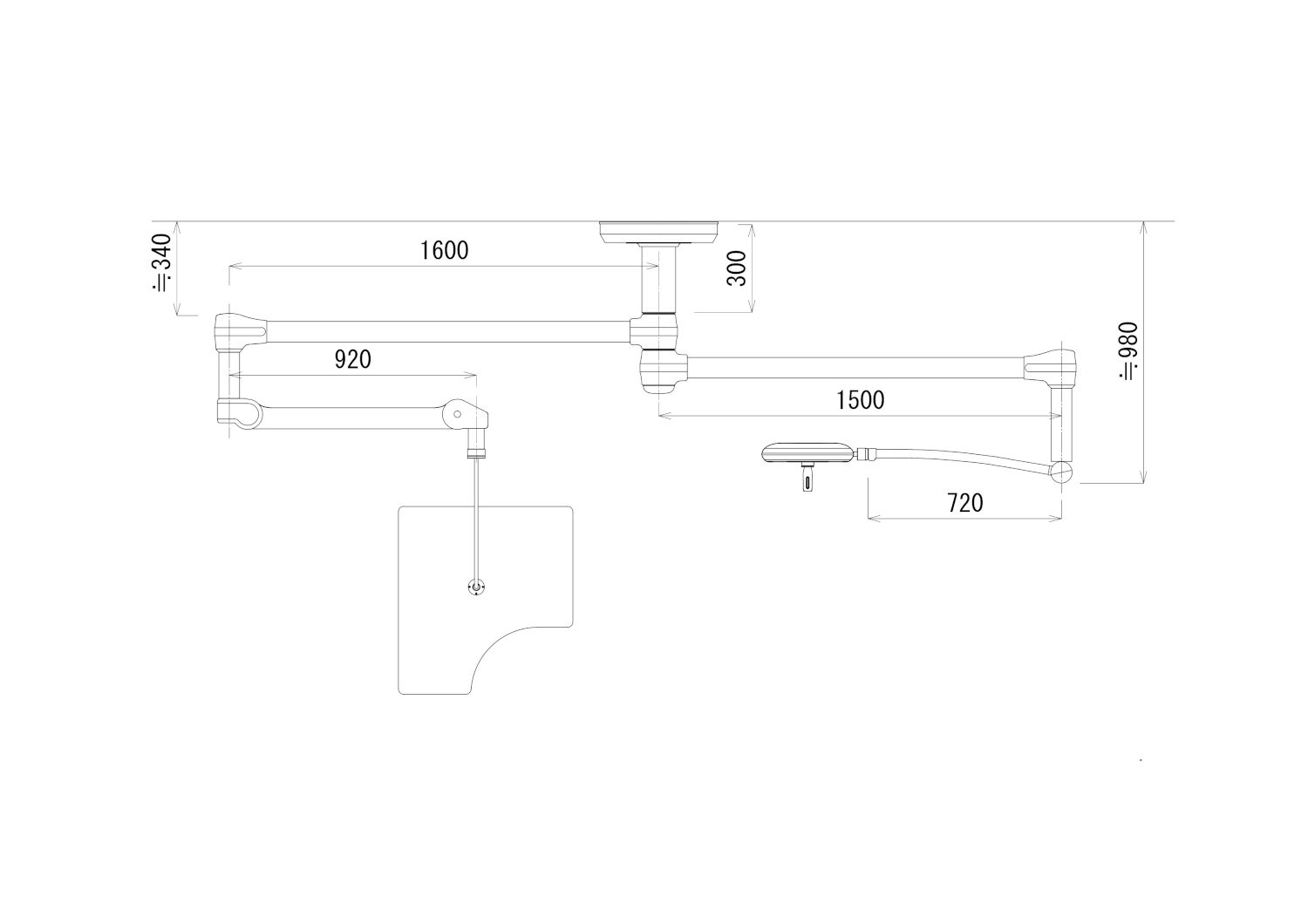

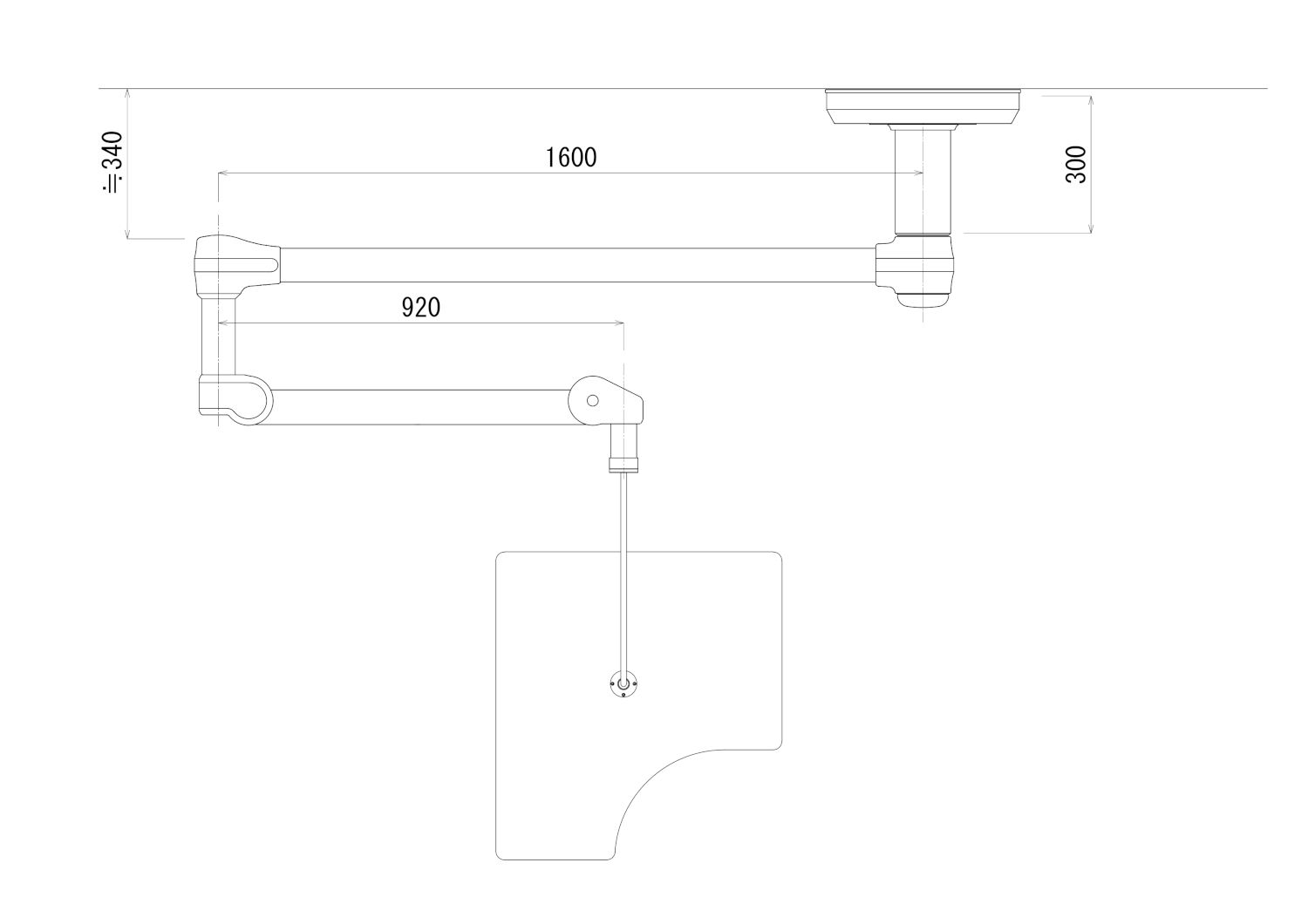

Long arm type
Applications
Medical Field
Angiography suite
It has been delivered to many angiography rooms as a ceiling-suspended radiation protection shield.
X-ray fluoroscopy room
It is also used in X-ray fluoroscopy rooms as a means of reducing radiation exposure to the surgeon during endoscopic procedures.
Hybrid operating room
It can also be used in hybrid operating rooms where installation space is limited by illuminators, monitors, etc.
