It is a hygienic mesh belt made of polyester fiber.
Taking advantage of the mesh structure, they are used for drying, washing, draining, suction belt conveying, and other applications.
Features

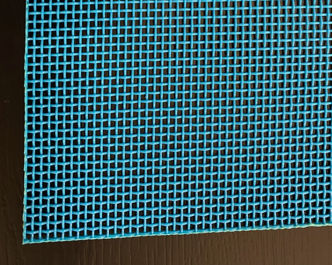

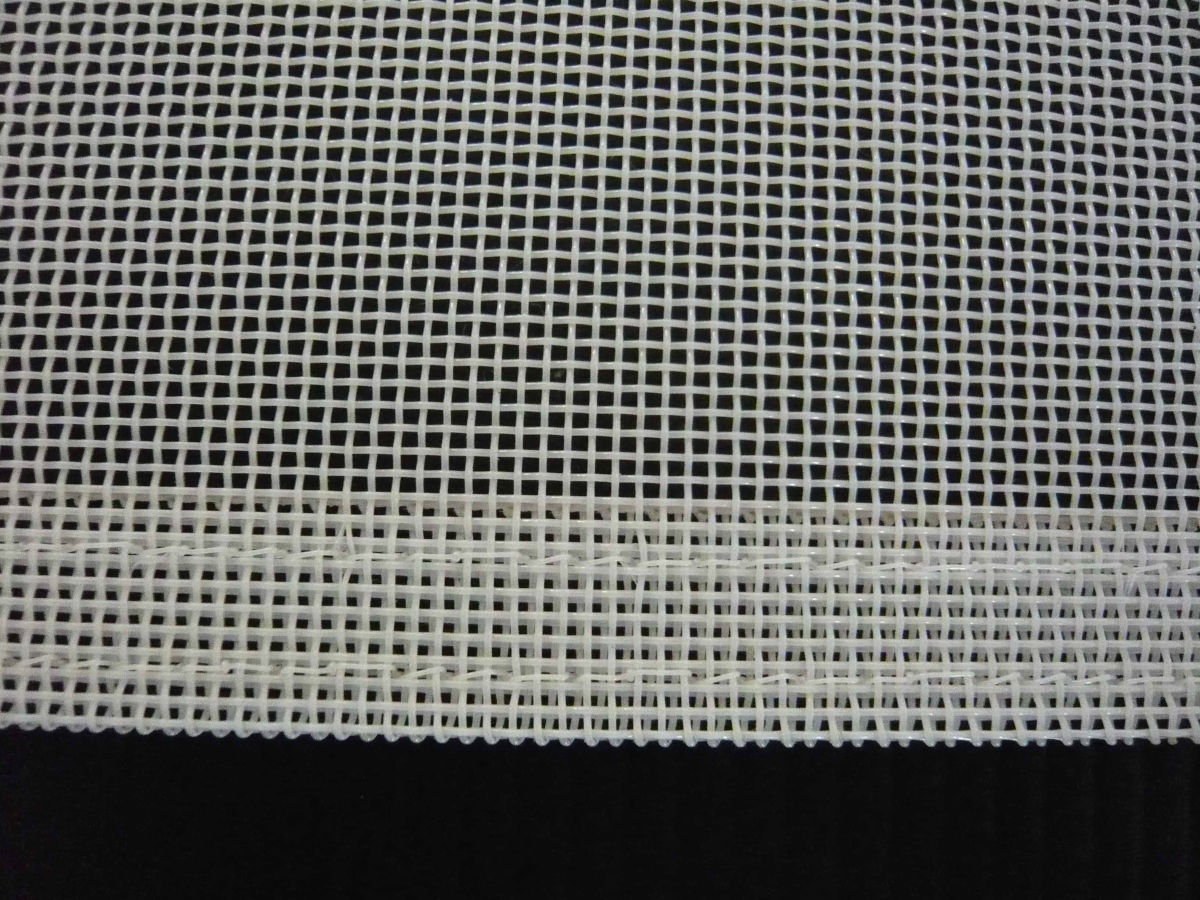

The mesh belt is available in two colors: white and blue.
The blue color is highly visible, and even if a belt is damaged and mixed in with the conveyed material, it can be detected at an early stage.
Since the material is polyester, it has the following features
- Water-resistant
- Excellent heat resistance
- Excellent chemical resistance (except strong alkali and acid)
- Excellent durability
Due to the mesh structure,
- Lightweight and easy to handle
- Excellent breathability
- High drying efficiency
Lightweight and flexible
Compared to metal (stainless steel) mesh belts, polyester mesh belts are much lighter and more flexible, offering various advantages.

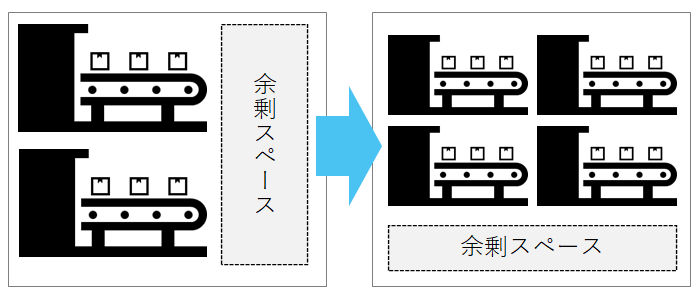

Leads to downsizing of facilities
Polyester mesh belt is made of polyester material, making it highly flexible and applicable to small pulleys.
This means that the belt mechanism can be downsized, which directly leads to downsizing of the equipment.
The space created by downsizing equipment can be considered for additional lines or for other uses.
Power saving of facilities
Its light weight leads to reduced power consumption, which makes a difference in running costs over the long term.
Improved maintainability
A good amount of space is needed to remove the belt and wash it, and the effort of supporting the weight and washing it is required.
Polyester mesh belt is light and flexible, allowing it to be removed and rolled up for easy operation.

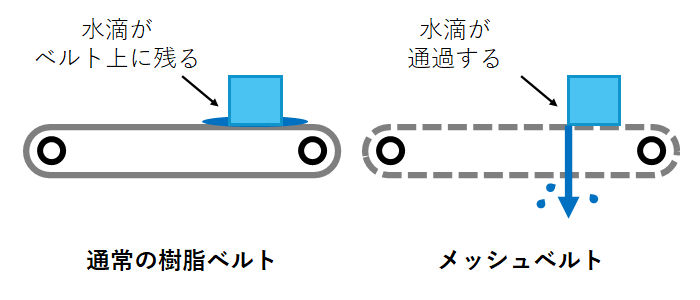

Drainage performance of mesh structure
Moisture on the belt can be a problem for materials conveyed that contain a lot of moisture.
The mesh structure allows moisture to permeate through and not remain on the belt, resulting in high drainage performance.
High air permeability in the drying process saves space.
In the drying process, high air permeability is utilized to achieve efficient drying of conveyed materials.
Advantageous for suction belt conveying of lightweight materials
The mesh structure and high air permeability are very advantageous for suction belt conveying of lightweight materials.
Even suction of the underside of the conveyed object is possible without strong suction force.
Supports a variety of secondary processing
Joint (endless)
- Folded looping method (KJ-2DF): The body is folded over to form a loop, which is detachable and strong.
- Binding and looping method (KJ-5E): Only the warp threads are folded over to create a loop, which is detachable and has few steps.
- Endless finish (KJ-5ED): No joints, so it cannot be attached or detached, but there are almost no steps.
Edge finishing
- Folding process: The body is folded over and sewn together.
- Urethane welding process: Reinforced with urethane sheets.
V-guide installation process to prevent meandering
- V-guide installation process: V-guide is installed to prevent meandering of the belt.
- Spill prevention guide installation process: A ⊥-shaped guide is installed to prevent cargo spillage due to inclined conveyance, etc.
Applications
Polyester mesh belts are used in a variety of applications.
Improving the efficiency of manufacturing processes in the food industry
Traditionally, mesh structured belts have been used in the food industry, but metal (stainless steel) mesh belts have been widely used in terms of durability and heat resistance.
However, metal mesh (stainless steel mesh) poses the risk of metal fragments getting mixed in with foodstuffs or processed products, and for safety reasons, many are switching to polyester mesh belts.
The polyester mesh belt is also lightweight, making replacement work more efficient.
Drying line conveyor belt
- Drying applications for marine products (small fish, shrimp, wakame seaweed, shellfish)
- Drying applications for printed matter, cleaning, nonwoven fabric, etc.
Washing line conveyor belt
- Cleaning of vegetables (leafy greens, daikon radish, root vegetables), rice, marine products, etc.
Drainage line conveyor belt
- Tofu (cotton tofu, silken tofu, dried tofu, etc.), vegetables, seafood, draining for cleaning
Vacuum conveyor belt
- Suction of lightweight materials such as nonwoven fabric
Others
- Wastewater and human waste treatment
- Cooling lines (e.g., for conveying masticated rubber)
